Same model may have multiple batches, images only for reference.

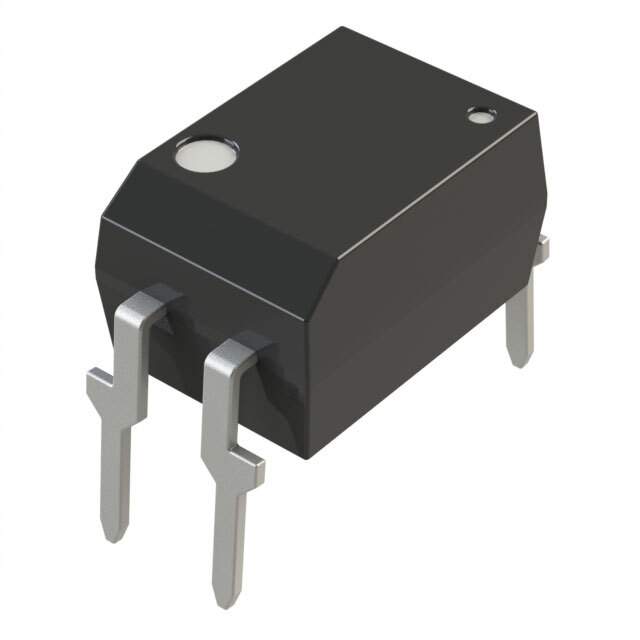

TLP3554(F) Real Image
Same model may have multiple batches, images only for reference.

TLP3554(F)

Part No TLP3554(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2.5A 0-40V / Solid State SPST-NO (1 Form A) 4-DIP (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Toshiba Semiconductor and Storage
Series TLP3554
Package Tube
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.33VDC
Voltage - Load 0 V ~ 40 V
Load Current 2.5 A
On-State Resistance (Max) 150 mOhms
Termination Style PC Pin
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package 4-DIP
Base Product Number TLP3554
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Standard Package 100
Win Source Part Number 960809-TLP3554(F)
Ultra Librarian 3D Model Ultra Librarian TLP3554(F) CAD Model

Description

The TLP3554(F) is a solid-state relay from Toshiba Semiconductor and Storage.

  • Switching Type: SPST-NO (1 Form A)
  • Maximum Input Voltage: 1.33VDC
  • Load Current: 2.5A
  • On-State Resistance: 150mOhms
  • Load Voltage: 0V to 40V
  • Package: 4-DIP (0.300", 7.62mm)
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Standard Package Quantity: 100
