The IXYS 982379-CLA30E1200PC-TRL is a thyristor SCR with a voltage rating of 1.2 kV and a maximum current rating of 30 A manufactured by IXYS.

• Applications: requiring high surge current capability and high voltage blocking capability
• Type: standard recovery

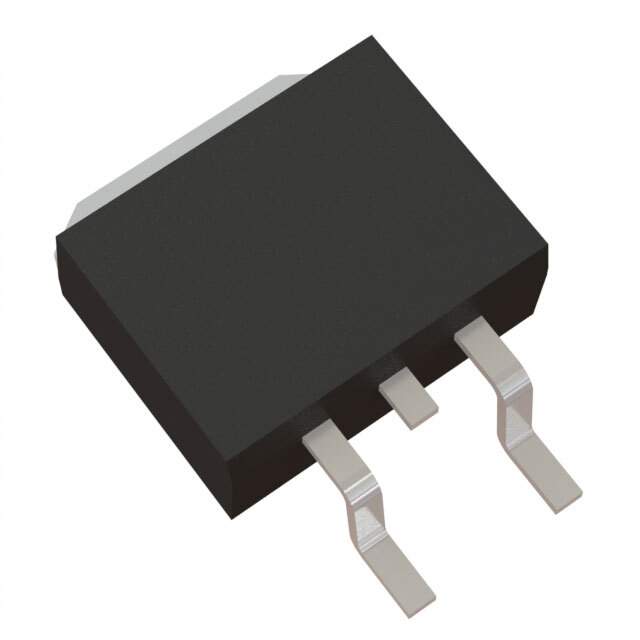

• Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
• Maximum Gate Trigger Voltage: 1.3 V
• Maximum Gate Trigger Current: 30 mA
• Current Holding Capacity: 60 mA
• Maximum On-State Voltage Drop: 1.59 V
• Non-Repetitive Surge Current Rating: 300 A @ 50/60 Hz
• Operating Temperature Range: -40°C to 150°C
• Ideal for: applications in power supplies, motor control, lighting control, and welding equipment
