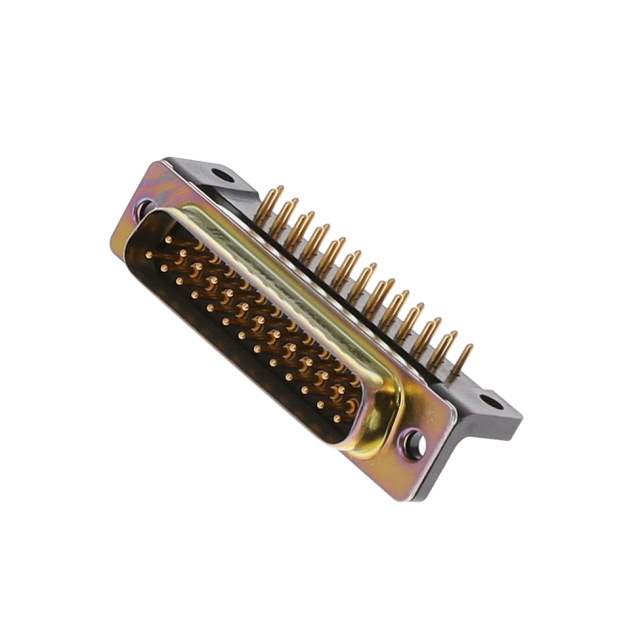

M24308/24-39Z Real Image
Same model may have multiple batches, images only for reference.

M24308/24-39Z

Part No M24308/24-39Z
Manufacturer ITT Cannon, LLC
Catalog D - Sub Connectors
Description 25 Position D-Sub Plug, Male Pins Connector, Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family D-Sub Connectors
Manufacturer ITT-Cannon,-LLC
Series Military, MIL-DTL-24308, D*MM
Packaging Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Mounting Style Panel Mount, Through Hole, Right Angle
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Features Mounting Brackets
Shell Material, Finish Steel, Yellow Chromate Plated Zinc
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Operating Temperature Range -55°C ~ 150°C
Current Rating 7.5A
Housing Material Polyester
Win Source Part Number 206959-M24308/24-39Z
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian M24308/24-39Z CAD Model

Description

The ITT-Cannon, LLC M24308/24-39Z D-sub connector is a plug with male pins designed for panel mounting.

  • Shell Finish: Yellow chromate plated zinc
  • Housing Material: Polyester
  • Mounting Type: Through-hole, right-angle
  • Current Rating: 7.5A
  • Voltage Rating: Not specified
  • Contact Finish: Gold
  • Contact Finish Thickness: 50µin
  • Series: MIL-DTL-24308, D*MM
  • Positions: 25
  • Packaging: Bulk
  • Features: Mounting brackets
