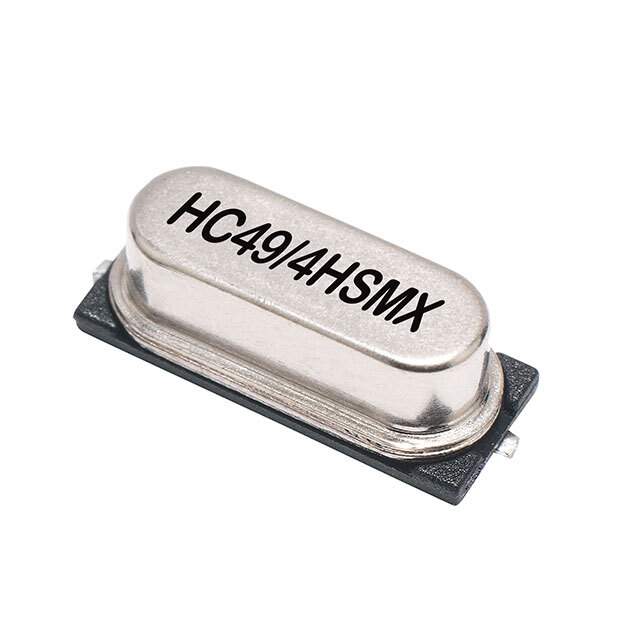

LFXTAL003151REEL Real Image1 LFXTAL003151REEL Real Image2
Same model may have multiple batches, images only for reference.
LFXTAL003151REEL Real Image1 LFXTAL003151REEL Real Image2
LFXTAL003151REEL Real Image1 LFXTAL003151REEL Real Image2
Same model may have multiple batches, images only for reference.

LFXTAL003151REEL

Part No LFXTAL003151REEL
Manufacturer IQD Frequency Products Ltd
Catalog Crystals
Description CRYSTAL 8.0MHZ 16PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer IQD Frequency Products
Packaging Reel
Type MHz Crystal
Frequency 8MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 16pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Style SMD
Manufacturer Package HC-49/US
Dimension 0.449" L x 0.150" W (11.40mm x 3.80mm)
Height - Seated (Maximum) 0.169" (4.30mm)
Manufacturer Pack Quantity 1,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810160-LFXTAL003151REEL
Ultra Librarian 3D Model Ultra Librarian LFXTAL003151REEL CAD Model

Description

The product's supply and demand status is currently limited.

  • Supply and Demand Status: Limited
  • Packaging: Reel
  • Mounting Style: Surface mount
  • Frequency: 8MHz
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 16pF
  • Operating Mode: Fundamental
  • Temperature Range: -10°C ~ 60°C
  • Dimension: 0.449" L x 0.150" W (11.40mm x 3.80mm)
  • Manufacturer Package: HC-49/US
  • Height - Seated (Maximum): 0.169" (4.30mm)
  • Win Source Part Number: 810160-LFXTAL003151REEL
