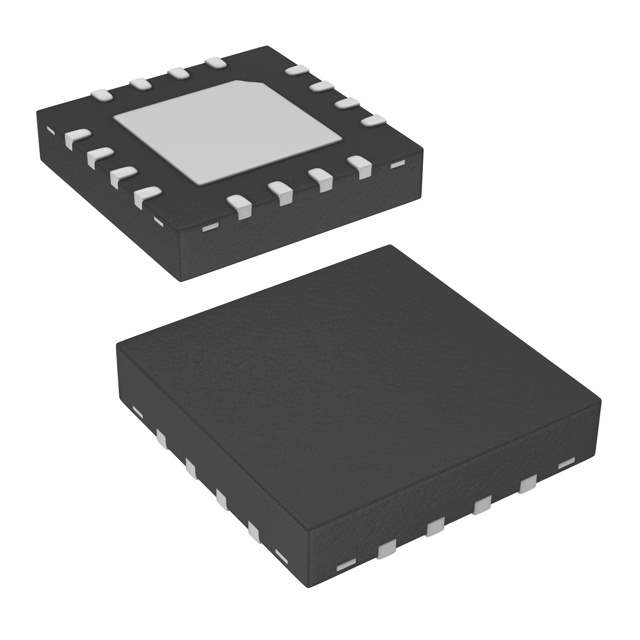

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 4
Gate Type N-Channel MOSFET
Supply Voltage - Operating 10.8 V to 13.2 V
Current - Peak Output (Source, Sink) 1.25A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 36V
Rise and Fall Time 26ns, 18ns
Temperature Range - Operating 0°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 16-QFN (4x4)
Win Source Part Number 006365-ISL6614CRZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL6614CRZ CAD Model

Description

The Intersil ISL6614CRZ is a half-bridge synchronous channel type driver with 4 drivers.

  • Manufacturer: Intersil
  • Channel Type: Synchronous
  • Configuration: Half-Bridge
  • Drivers: 4
  • Mounting: SMD (SMT)
  • Package: 16-QFN (4x4)
  • High Side Voltage: 36V
  • Operating Temperature: 0°C to 125°C
  • Supply/Demand: Balanced
  • Popularity: Medium
  • Application: Electronics applications requiring a half-bridge synchronous channel type driver
