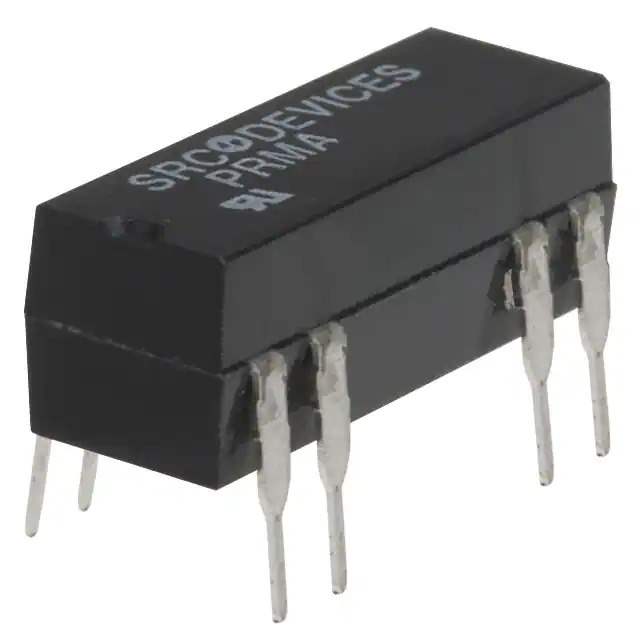

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Coto Technology
Series PRMA
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 250 mA
Switching Voltage 100VAC, 100VDC - Max
Coil Current 25 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.8 VDC
Operate Time 2 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 80°C
Coil Resistance 200 Ohms
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 890171-PRMA1C05
Ultra Librarian 3D Model Ultra Librarian PRMA1C05 CAD Model

Description

The PRMA series relay is a high-quality reed relay designed for various applications from Coto Technology.

  • Termination Style: PC Pin
  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 5VDC
  • Coil Resistance: 200 Ohms
  • Coil Current: 25 mA
  • Operate Time: 2 ms
  • Release Time: 3 ms
  • Contact Rating: 250 mA
  • Switching Voltage (Max): 100VAC and 100VDC
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 80°C
