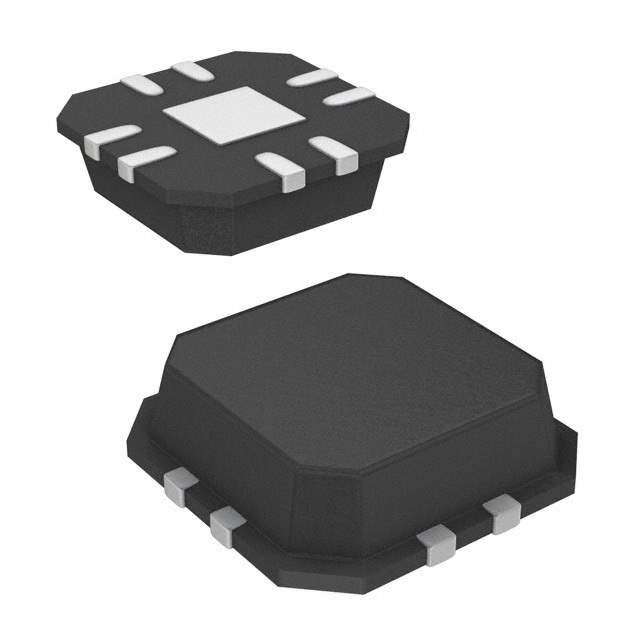

ISL6609AIRZ-T Real Image
Same model may have multiple batches, images only for reference.

ISL6609AIRZ-T

Part No ISL6609AIRZ-T
Manufacturer Intersil
Catalog PMIC - Gate Drivers
Description IC MOSFET DRVR SYNC BUCK 8-QFN
Datasheet
ISL6609AIRZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Active
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 4.5 V to 5.5 V
Logic Voltage - VIL, VIH 1V, 2V
Current - Peak Output (Source, Sink) -, 4A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 36V
Rise and Fall Time 8ns, 8ns
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-QFN (3x3)
Win Source Part Number 133277-ISL6609AIRZ-T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISL6609AIRZ-T CAD Model

Description

The Intersil ISL6609AIRZ-T is a half-bridge gate driver IC with two non-inverting channels and N-channel MOSFET gate drivers.

  • Temperature Range: -40°C to 125°C
  • Supply Voltage Range: 4.5V to 5.5V
  • High Side Voltage: 36V
  • Channel Type: Synchronous
  • Driven Configuration: Half-Bridge
  • Gate Type: N-channel MOSFET
  • Logic Voltage for VIL: 1V
  • Logic Voltage for VIH: 2V
  • Peak Output Current for the Sink: 4A
  • Rise and Fall Time: 8ns
  • Packaging: Reel - TR
  • Mounting: SMD (SMT)
