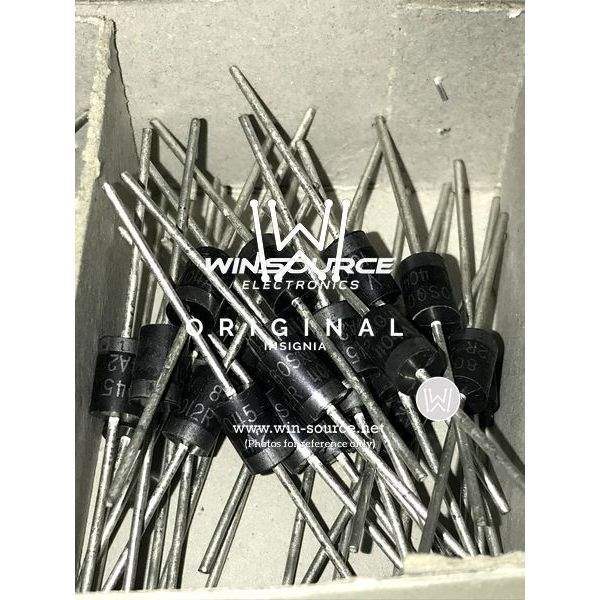

The 80SQ045 is a Schottky Barrier Rectifier manufactured by International Rectifier (now Infineon Technologies). It is designed for high-current, low-voltage applications requiring efficient rectification and low forward voltage drop. This rectifier is commonly used in switching power supplies, freewheeling diodes, and polarity protection circuits.

Applications

• Switching power supplies
• Freewheeling diodes in converters
• Polarity protection
• High-frequency inverters
• Reverse battery protection

Features

• Schottky Barrier Rectifier
• High surge current capability
• Low forward voltage drop
• High-frequency operation

Benefits

• Efficient rectification reduces power losses in power supplies and converters.
• Low forward voltage drop minimizes heat generation and improves overall efficiency.
• High surge current capability provides reliable operation under transient conditions.

Additional Details

The 80SQ045 has a maximum average forward current of 80A and a peak repetitive reverse voltage of 45V. It is typically available in a TO-220 or similar package designed for efficient heat dissipation. The operating junction temperature range is usually between -55°C to +150°C. The Schottky barrier construction minimizes the forward voltage drop and switching losses, making it suitable for high-frequency applications.

Proper thermal management, including the use of heatsinks, is crucial to ensure the rectifier operates within its specified temperature limits. The device is often used in parallel configurations to increase current handling capacity. Care should be taken to avoid exceeding the maximum ratings of the device to prevent damage and ensure long-term reliability.
