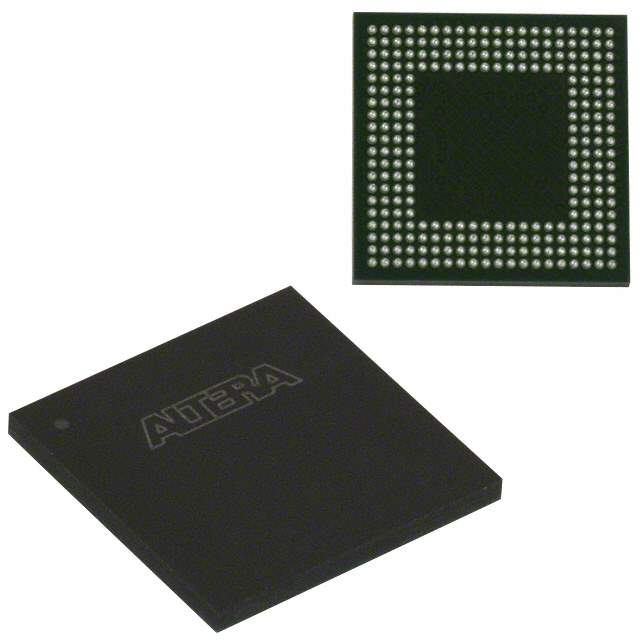

EPM570ZM256C7N Real Image
Same model may have multiple batches, images only for reference.

EPM570ZM256C7N

Part No EPM570ZM256C7N
Manufacturer Intel
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 440MC 9NS 256MBGA
Datasheet
EPM570ZM256C7N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>CPLDs (Complex Programmable Logic Devices)
Manufacturer Intel
Packaging Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 9 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 570
Number of Macrocells 440
Number of I/O 160
Temperature Range - Operating 0°C ~ 85°C (TJ)
Mounting Surface Mount
Case / Package 256-TFBGA
Supplier Device Package 256-MBGA (11x11)
Base Product Number EPM570
RoHS Status RoHS Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Part Number -544-2454,544-2454,970406
Standard Package 176
Win Source Part Number 1321799-EPM570ZM256C7N
Ultra Librarian 3D Model Ultra Librarian EPM570ZM256C7N CAD Model

Description

The Intel EPM570ZM256C7N is an in-system programmable CPLD (Complex Programmable Logic Device) with 570 logic elements/blocks and 440 macrocells.

  • Logic Elements/Blocks: 570
  • Macrocells: 440
  • Delay Time: tpd(1) max 9 ns
  • Voltage Supply Range: 1.71V to 1.89V
  • Package: 256-MBGA (11x11)
  • Mounting: Surface Mountable
  • I/Os: 160
  • RoHS Compliant: RoHS compliant
  • Temperature Range: 0°C to 85°C (TJ)
