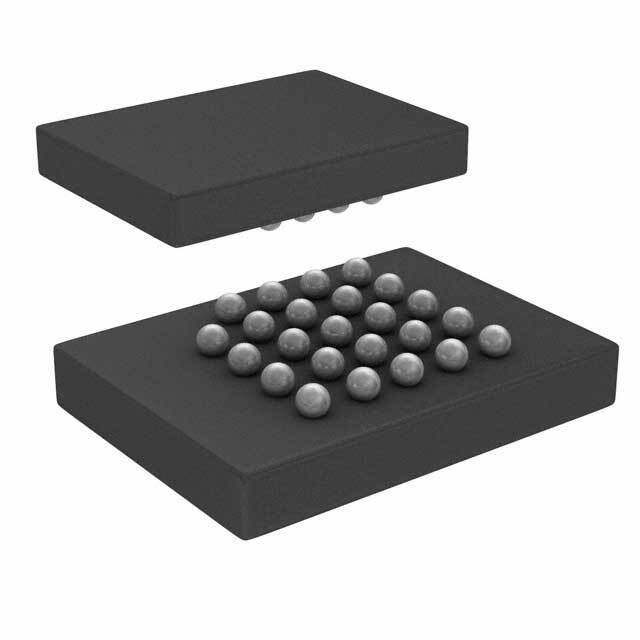

EPCQL256F24IN Real Image
Same model may have multiple batches, images only for reference.

EPCQL256F24IN

Part No EPCQL256F24IN
Manufacturer Intel
Catalog Memory - Configuration Proms for FPGAs
Description IC QUAD-SERIAL LOW VOLTAGE CONFI
Datasheet
EPCQL256F24IN Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Configuration Proms for FPGAs
Mfr Intel
Series EPCQ-L
Package Tray
Product Status Obsolete
Programmable Not Verified
Programmable Type In System Programmable
Memory Size 256Mb
Voltage - Supply 1.7V ~ 2V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 24-TBGA
Supplier Device Package 24-FBGA (6x8)
Standard Package 187 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8542.32.0051
Win Source Part Number 845614-EPCQL256F24IN
Ultra Librarian 3D Model Ultra Librarian EPCQL256F24IN CAD Model

Description

The 845614-EPCQL256F24IN is an integrated circuit memory configuration PROM designed for FPGAs from Intel.

  • Series: EPCQ-L
  • Memory Size: 256Mb
  • Programmable: Yes
  • In-System Programming: Yes
  • Voltage Supply: 1.7V to 2V
  • Mounting Type: Surface Mount
  • Package/Case: 24-TBGA
  • Supplier Device Package: 24-FBGA (6x8)
  • Operating Temperature: -40°C to 85°C
  • HTSUS Code: 8542.32.0051
  • Product Status: Obsolete
  • Moisture Sensitivity Level (MSL): 3 (168 Hours)
