EPCQL1024F24IN

Part No EPCQL1024F24IN
Manufacturer Intel
Catalog Memory - Configuration Proms for FPGAs
Description IC QUAD-SERIAL LOW VOLTAGE CONFI
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intel
Packaging Tray
Status Obsolete
Programmable Type In System Programmable
Memory Size 1GB
Supply Voltage (V) 1.7V ~ 2V
Temperature Range - Operating -40°C ~ 85°C

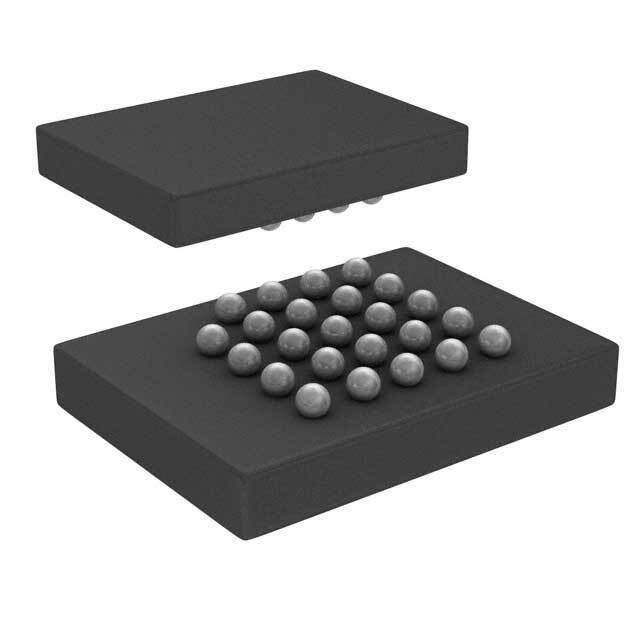

Manufacturer Package 24-LBGA
Supplier Device Package 24-FBGA (6x8)
Manufacturer Pack Quantity 187
MSL Level 3 (168 Hours)
Win Source Part Number 758408-EPCQL1024F24IN
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EPCQL1024F24IN CAD Model

Description

The EPCQL1024F24IN is a configuration device from Intel (formerly Altera). These devices are used to store configuration data for Field Programmable Gate Arrays (FPGAs). They provide a non-volatile memory solution that allows FPGAs to be configured quickly and reliably upon power-up. The EPCQL1024F24IN offers a 1024 Mbit (128 MB) memory capacity, suitable for storing the configuration data for larger and more complex FPGA designs.

Applications:

  • FPGA configuration storage
  • Data storage for embedded systems
  • Boot memory for microprocessors
  • Code storage for programmable logic devices
  • Remote configuration updates

Features:

  • 1024 Mbit (128 MB) memory capacity
  • Non-volatile memory
  • Fast configuration time
  • Low power consumption
  • Surface-mount package
  • RoHS compliant

Benefits:

  • Reliable FPGA configuration
  • Simplified system design
  • Reduced board space
  • Fast system startup
  • Easy to update FPGA configurations

Additional Details:

The EPCQL1024F24IN supports a serial interface for programming and configuration. It is designed to work seamlessly with Intel FPGAs, providing a complete configuration solution. Detailed specifications, including operating voltage, programming time, and temperature range, are available in the manufacturer's datasheet. The device is available in a surface-mount package for easy integration into printed circuit boards. It's typically programmed using Intel's Quartus Prime software. The non-volatile nature of the memory ensures that the FPGA retains its configuration even when power is removed.
