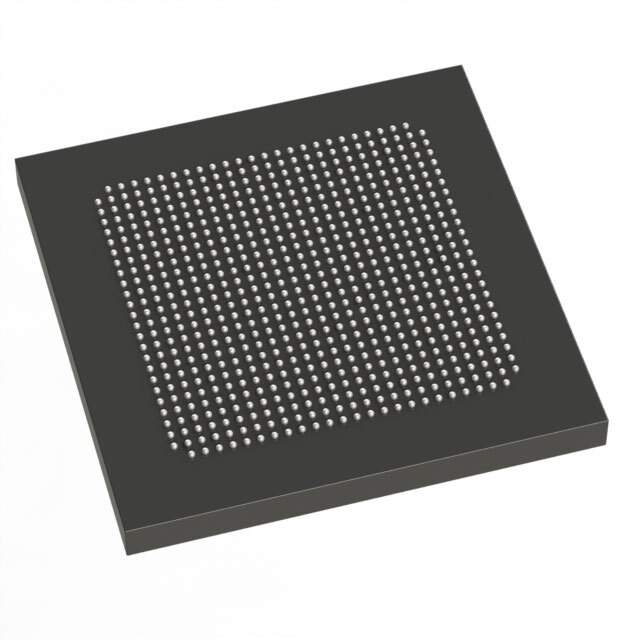

EP4SE360H29C3N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 488 23105536 353600 780-BBGA, FCBGA
Manufacturer Intel
Series STRATIX® IV E
Package Tray
Part Status Obsolete
Number of I/O 488
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 780-BBGA, FCBGA
Case / Package 780-HBGA (33x33)
Family Name EP4SE360
MSL Level 3 (168 Hours)
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Part Number 544-2633, 973233
Quantity per package 24
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870572-EP4SE360H29C3N
Ultra Librarian 3D Model Ultra Librarian EP4SE360H29C3N CAD Model

Description

The Intel EP4SE360H29C3N is a STRATIX IV E series Field Programmable Gate Array (FPGA) IC with 488 I/Os.

  • I/Os: 488
  • Package: 780-BBGA, FCBGA
  • Mounting Type: Surface Mounted
  • Gates: 23105536
  • Logic Elements: 353600
  • Status: Obsolete
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Operating Temperature: 0°C to 85°C
  • MSL Level: 3 (168 Hours)
