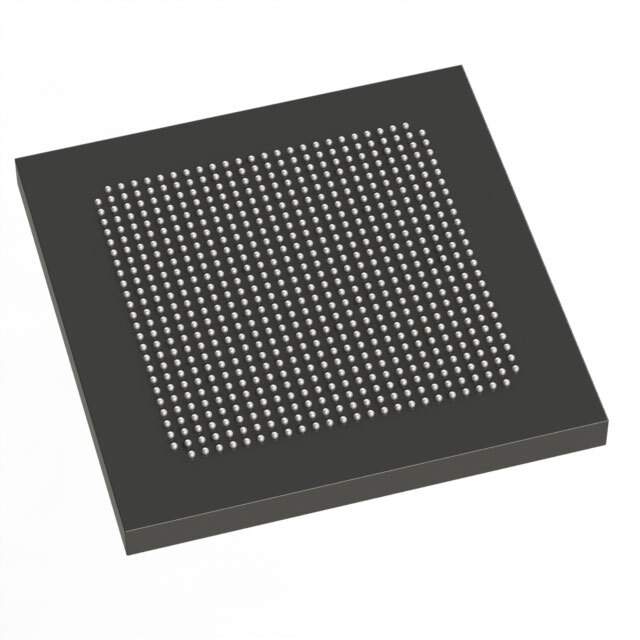

EP3SE260H780C4N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® III E
Package Tray
Product Status Obsolete
Number of LABs/CLBs 10200
Number of Logic Elements/Cells 255000
Total RAM Bits 16672768
Number of I/O 488
Voltage - Supply 0.86V ~ 1.15V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 780-BBGA, FCBGA
Supplier Device Package 780-HBGA (33x33)
Base Product Number EP3SE260
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Other Names 966980
Standard Package 24
Win Source Part Number 1011682-EP3SE260H780C4N
Ultra Librarian 3D Model Ultra Librarian EP3SE260H780C4N CAD Model

Description

The EP3SE260H780C4N is an embedded FPGA (Field Programmable Gate Array) from Intel.

  • Series: Stratix III E
  • Package: tray
  • Standard Package: 24
  • Voltage Supply: 0.86V to 1.15V
  • Temperature Range: 0°C to 85°C
  • Logic Elements/Cells: 255,000
  • Total RAM Bits: 16,672,768
