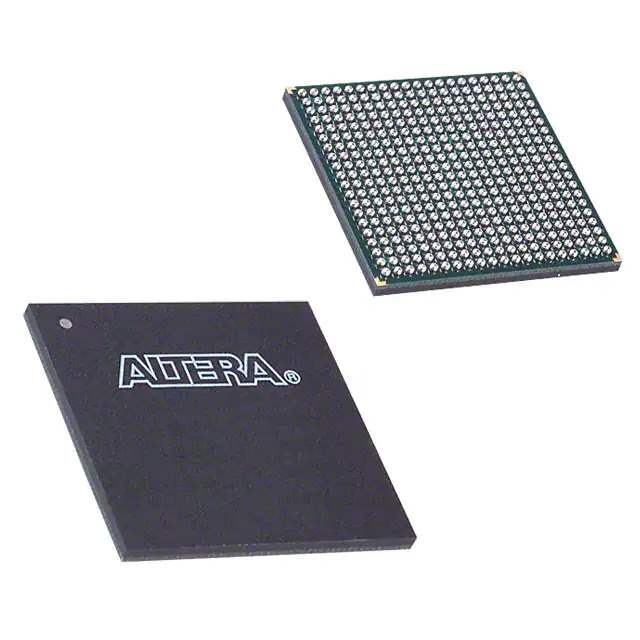

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Cyclone®
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 2006
Number of Logic Elements/Cells 20060
Total RAM Bits 294912
Number of I/O 301
Voltage - Supply 1.425V ~ 1.575V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 400-BGA
Supplier Device Package 400-FBGA (21x21)
Base Product Number EP1C20
Standard Package 60 pcs
MSL Level 3 (168 Hours)
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 589404-EP1C20F400C6
Ultra Librarian 3D Model Ultra Librarian EP1C20F400C6 CAD Model

Description

The EP1C20F400C6 is an embedded FPGA (Field Programmable Gate Array) from Intel's Cyclone series.

  • Package: 400-BGA
  • Standard Package: 60 pieces
  • I/Os: 301
  • LABs/CLBs: 2006
  • Logic Elements/Cells: 20060
  • Total RAM: 294912 bits
  • Voltage Range: 1.425V to 1.575V
  • Mounting: Surface Mount
  • Operating Temperature: 0°C to 85°C
