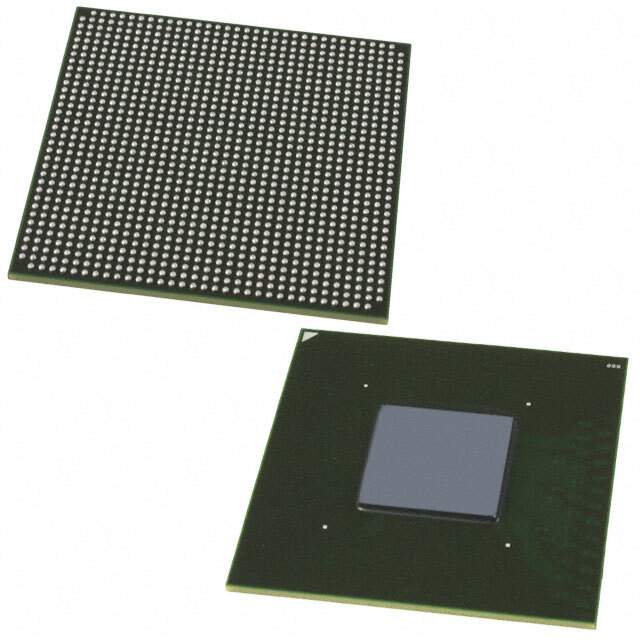

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Arria V GX
Package Tray
Product Status Obsolete
Number of LABs/CLBs 17110
Number of Logic Elements/Cells 362000
Total RAM Bits 19822592
Number of I/O 544
Voltage - Supply 1.07V ~ 1.13V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1152-BBGA, FCBGA Exposed Pad
Supplier Device Package 1152-FBGA (35x35)
Base Product Number 5AGXBB3
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Other Names 969890
Standard Package 24
Win Source Part Number 1222209-5AGXBB3D4F35C4N
Ultra Librarian 3D Model Ultra Librarian 5AGXBB3D4F35C4N CAD Model

Description

The 5AGXBB3D4F35C4N is an embedded FPGA (Field Programmable Gate Array) that is a part of the Arria V GX series from Intel.

  • Series: Arria V GX
  • Logic Elements/Cells: 362000
  • LABs/CLBs: 17110
  • I/O: 544
  • Total RAM Bits: 19822592
  • Voltage Supply: 1.07V to 1.13V
  • Operating Temperature: 0°C to 85°C
  • Packaging: Tray
  • Standard Package: 24
  • Product Status: Obsolete
