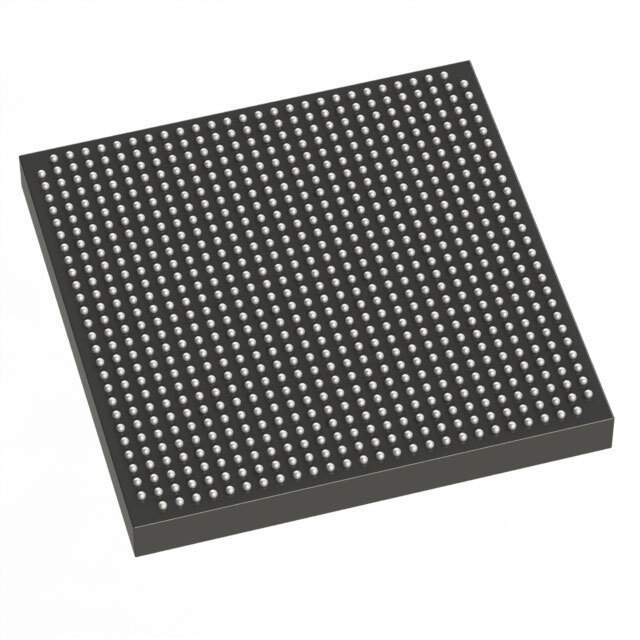

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® III L
Package Tray
Product Status Obsolete
Number of LABs/CLBs 5700
Number of Logic Elements/Cells 142500
Total RAM Bits 6543360
Number of I/O 488
Voltage - Supply 0.86V ~ 1.15V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 780-BBGA, FCBGA
Supplier Device Package 780-FBGA (29x29)
Base Product Number EP3SL150
MSL Level 4 (72 Hours)
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Names 544-2404,967254,EP3SL150F780C3NES
Standard Package 36
Win Source Part Number 1181530-EP3SL150F780C3N
Ultra Librarian 3D Model Ultra Librarian EP3SL150F780C3N CAD Model

Description

The EP3SL150F780C3N is an integrated circuit designed for embedded field programmable gate array (FPGA) applications, made by Intel.

  • Series: Stratix III L
  • Package: Tray
  • Standard Package: 36
  • Mounting Type: SMD (SMT)
  • I/O: 488
  • LABs/CLBs: 5700
  • Logic Elements/Cells: 142500
  • Total RAM Bits: 6543360
  • Voltage Supply: 0.86V to 1.15V
  • Operating Temperature: 0°C to 85°C (TJ)
  • ECCN: 3A001A7A
  • MSL Level: 4 (72 hours)
  • HTSUS: 8542.39.0001
  • Status: Obsolete
