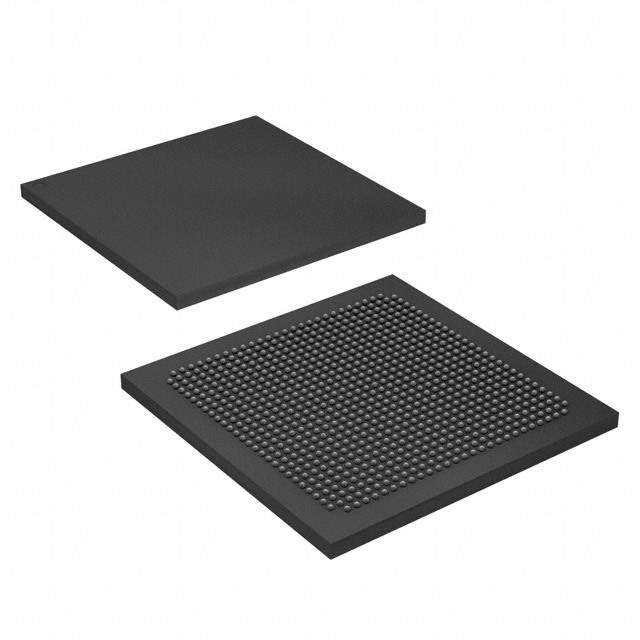

10AS016E3F29I2SG Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>System On Chip (SoC)
Manufacturer Intel
Packaging Tray
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA, POR, WDT
Connectivity EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 1.5GHz
Primary Attributes FPGA - 160K Logic Elements
Temperature Range - Operating -40°C ~ 100°C (TJ)
Case / Package 780-BBGA, FCBGA
Supplier Device Package 780-FBGA, FC (29x29)
Number of I/O 288
RoHS Status RoHS Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1
HTSUS 8542.39.0001
Other Part Number 10AS016E3F29I2SG-ND,964682,544-3615
Standard Package 1
Win Source Part Number 1323168-10AS016E3F29I2SG
Ultra Librarian 3D Model Ultra Librarian 10AS016E3F29I2SG CAD Model

Description

The Intel 10AS016E3F29I2SG is an integrated circuit with a dual ARM Cortex-A9 MPCore processor with CoreSight.

  • Processor: Dual ARM Cortex-A9 MPCore with CoreSight
  • Speed: 1.5GHz
  • RAM: 256KB
  • FPGA Logic Elements: 160K
  • Package: 780-FBGA, FC (29x29)
  • Operating Temperature: -40°C to 100°C
  • Category: Embedded-System On Chip (SoC)
  • RoHS Compliant: Compliant
  • Popularity: High
  • Supply and Demand: Balanced
