Same model may have multiple batches, images only for reference.

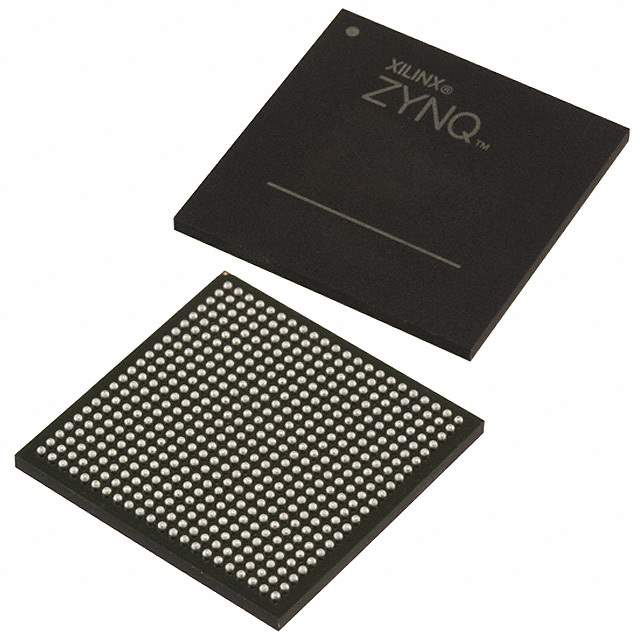

XC7Z015-L1CLG485I Real Image
Same model may have multiple batches, images only for reference.

XC7Z015-L1CLG485I

Part No XC7Z015-L1CLG485I
Manufacturer Amd
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC SOC CORTEX-A9 667MHZ 485CSBGA / Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC series Artix™-7 FPGA, 74K Logic Cells 667MHz 485-CSPBGA (19x19)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - System On Chip (SoC)
Mfr AMD Xilinx
Series Zynq®-7000
Package Tray
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 667MHz
Primary Attributes Artix™-7 FPGA, 74K Logic Cells
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 485-LFBGA, CSPBGA
Supplier Device Package 485-CSPBGA (19x19)
Number of I/O 130
Base Product Number XC7Z015
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Standard Package 84
Win Source Part Number 1150247-XC7Z015-L1CLG485I
Ultra Librarian 3D Model Ultra Librarian XC7Z015-L1CLG485I CAD Model

Description

The XC7Z015-L1CLG485I is an integrated circuit (IC) designed for embedded system-on-chip (SoC) applications.

  • Series: Zynq®-7000
  • Processor: Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
  • Speed: 667MHz
  • Package: Tray
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, and UART/USART
  • Peripheral: DMA
  • RAM Size: 256KB
  • Architecture: MCU, FPGA
  • Attribute: Artix™-7 FPGA with 74K logic cells
