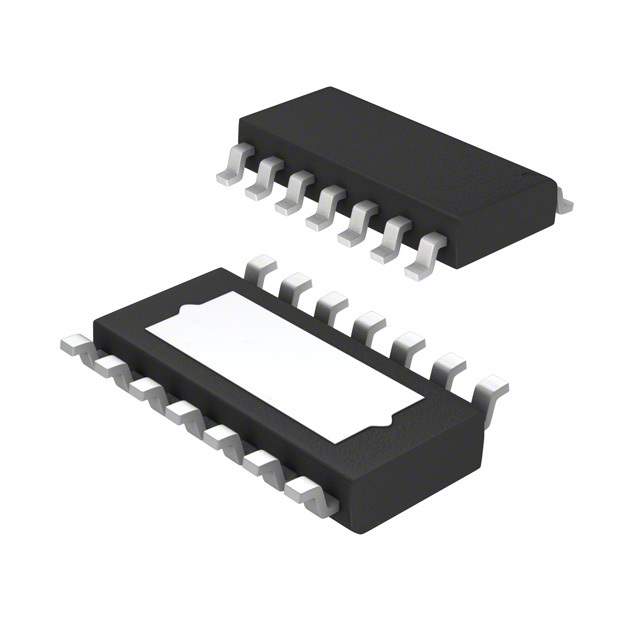

The TLF4277EL is a monolithic integrated voltage regulator designed for automotive applications. It provides a stable and regulated output voltage even under harsh automotive conditions, ensuring reliable operation of electronic components. It is designed to withstand various electrical transients and temperature variations commonly found in automotive environments.

Applications:

• Automotive ECUs (Engine Control Units): Powers microcontrollers and sensors in engine management systems.
• Body Control Modules (BCM): Provides regulated voltage for lighting control, door locks, and window lift systems.
• Transmission Control Units (TCU): Supplies stable voltage for the electronic components within automatic transmissions.
• Dashboard Electronics: Powers the instrument cluster, infotainment system, and other dashboard-mounted electronics.
• Advanced Driver Assistance Systems (ADAS): Used in radar, camera, and sensor-based ADAS functionalities.

Features:

• Wide Input Voltage Range: Operates with a wide range of input voltages commonly found in automotive systems.
• Low Dropout Voltage: Maintains regulation even with a small difference between input and output voltage.
• Overvoltage Protection: Protects the regulator and connected components from damage due to excessive input voltage.
• Short Circuit Protection: Shuts down the output in case of a short circuit, preventing damage.
• Overtemperature Protection: Protects the regulator from thermal damage by shutting down the output when the temperature exceeds a certain threshold.
• Enable Function: Allows external control of the regulator's output, enabling power saving modes.
• Low Quiescent Current: Minimizes power consumption when the regulator is not actively supplying current to the load.
• Reset Function: Generates a reset signal for connected microcontrollers when the output voltage drops below a certain threshold.

Benefits:

• Reliable Power Supply: Provides a stable and regulated output voltage for critical automotive electronics.
• Protection Against Electrical Hazards: Built-in protection features prevent damage from overvoltage, short circuits, and overtemperature conditions.
• Extended Operating Life: Rugged design and protection features contribute to a long and reliable operating life in harsh automotive environments.
• Simplified System Design: Integrated features reduce the need for external components, simplifying system design and reducing overall cost.
• Power Saving: Low quiescent current and enable function minimize power consumption, improving fuel efficiency and battery life.

Technical Specifications (Typical):

Input Voltage Range: 4.5V to 45V
Output Voltage: 5V (typical)
Output Current: Up to 400mA (depending on variant)
Quiescent Current: Low (typically in the microampere range)
Operating Temperature Range: -40°C to +150°C
