Same model may have multiple batches, images only for reference.

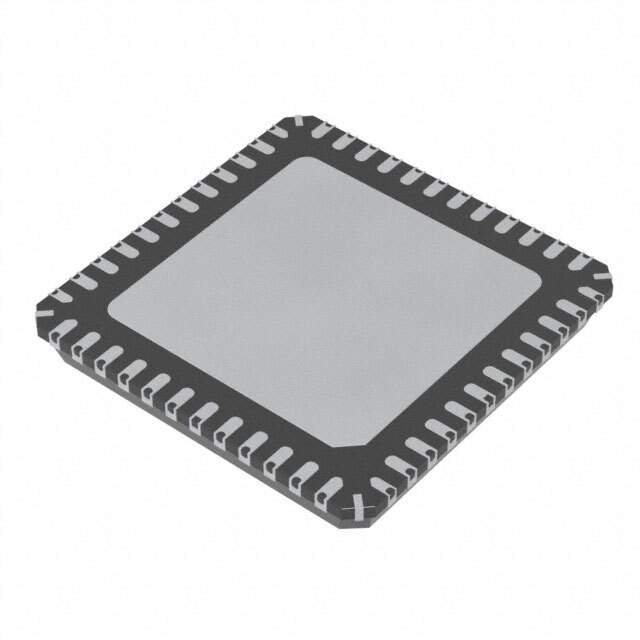

TLE9843QXXUMA1 Real Image
Same model may have multiple batches, images only for reference.

TLE9843QXXUMA1

Part No TLE9843QXXUMA1
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers - Application Specific
Description EMBEDDED POWER / MCU 32-bit ARM Cortex M0 RISC 48KB Flash 3.3V/5V/9V/12V/15V/18V/24V Automotive 48-Pin VQFN EP T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series Automotive, AEC-Q100
Packaging Reel package
Applications Automotive
Core Processor ARM Cortex-M0
Program Memory Type FLASH (48 kB)
RAM Size 4K x 8
Interface LIN, SSI, UART
Number of I/O 10
Operating Supply Voltage 3 V ~ 28 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD
Package 48-VFQFN Exposed Pad
Manufacturer Package VQFN-48-31
Win Source Part Number 797004-TLE9843QXXUMA1
Popularity Medium
Supply and Demand Status Limited
Family Name TLE9832-2
ECCN 3A991.a.2
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TLE9843QXXUMA1 CAD Model

Description

The Infineon Technologies TLE9843QXXUMA1 is a controller designed for automotive applications.

  • Core Processor: ARM Cortex-M0
  • Package: 48-VFQFN (exposed pad)
  • Operating Supply Voltage: 3V to 28V
  • Interfaces: LIN, SSI, UART
  • I/O: 10
  • Program Memory Type: FLASH (48kB)
  • RAM Size: 4K x 8
  • Mounting: Surface Mount
  • Series: Automotive
  • Compliance: AEC-Q100
