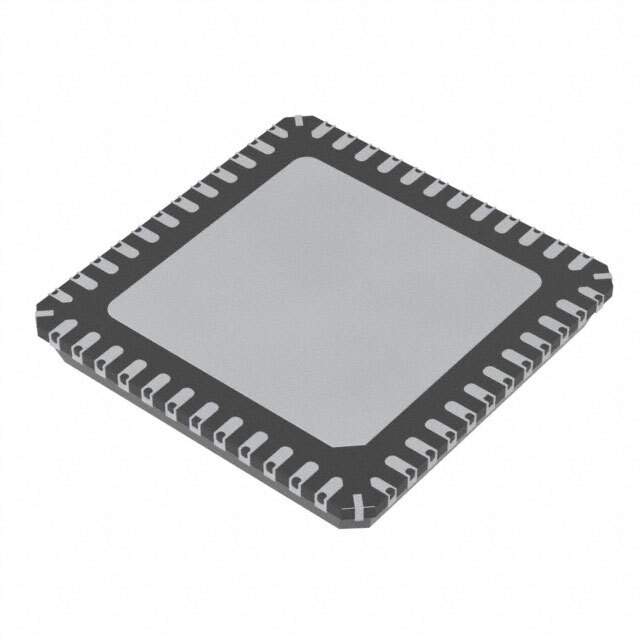

TLE9562QXXUMA1 Real Image
Same model may have multiple batches, images only for reference.

TLE9562QXXUMA1

Part No TLE9562QXXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Motor Drivers, Controllers
Description BLDC_DRIVER_IC PG-VQFN-48 / Motor Driver NMOS SPI PG-VQFN-48-31
Datasheet
TLE9562QXXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface SPI
Technology NMOS
Applications Automotive
Current - Output 250mA
Voltage - Supply 6V ~ 28V
Voltage - Load 6V ~ 28V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 48-VFQFN Exposed Pad
Supplier Device Package PG-VQFN-48-31
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 448-TLE9562QXXUMA1CT,448-TLE9562QXXUMA1TR,SP002929122,448-TLE9562QXXUMA1DKR
Standard Package 2,500
Win Source Part Number 970690-TLE9562QXXUMA1
Ultra Librarian 3D Model Ultra Librarian TLE9562QXXUMA1 CAD Model

Description

The TLE9562QXXUMA1 is a fully integrated motor driver from Infineon Technologies.

  • Application: Automotive
  • Package: 48-VFQFN Exposed Pad
  • Current Output: 250mA
  • Voltage Load: 6V to 28V
  • Output Configuration: Half Bridge
  • Channels: Four
  • Technology: NMOS
  • Interface: SPI
  • Motor Type: Brushed DC motors
  • Temperature Range: -40°C to 150°C (TJ)
  • AEC-Q100 Compliant: Yes
