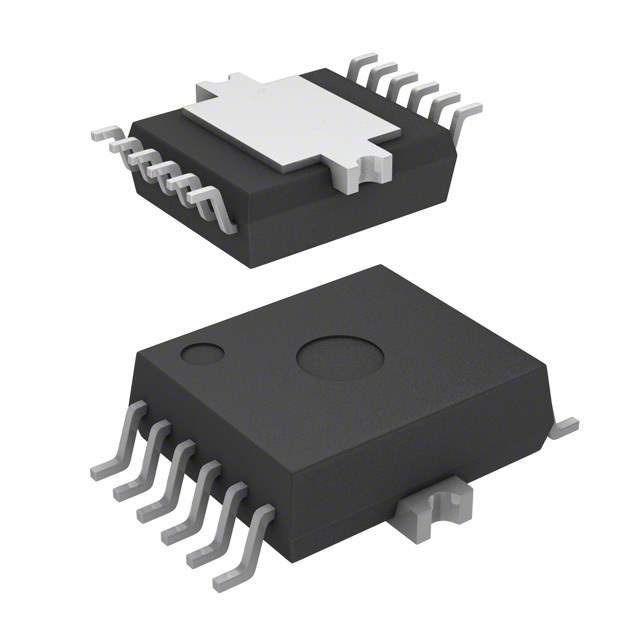

TLE9201SGAUMA1 Real Image
Same model may have multiple batches, images only for reference.

TLE9201SGAUMA1

Part No TLE9201SGAUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC DRIVER 12DSO / Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET PG-DSO-12-17
Datasheet
TLE9201SGAUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Output Configuration Half Bridge (2)
Applications DC Motors, General Purpose
Interface PWM, SPI
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 100mOhm LS, 100mOhm HS
Current - Output / Channel 6A
Voltage - Supply 5V ~ 28V
Voltage - Load 5V ~ 28V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Fault Protection Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting SMD (SMT)
Package / Case 12-BSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package PG-DSO-12-17
Base Product Number TLE9201
Other Names TLE9201SGAUMA1,2156-TLE9201SGAUMA1,TLE9201SGAUMA1DKR,SP000885602,TLE9201SGAUMA1CT,TLE9201SGAUMA1TR,IFEINFTLE9201SGAUMA1
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253560-TLE9201SGAUMA1
Ultra Librarian 3D Model Ultra Librarian TLE9201SGAUMA1 CAD Model

Description

The Infineon Technologies TLE9201SGAUMA1 is a full and half-bridge driver IC designed for use in DC motors and general-purpose applications.

  • Output: two half-bridge outputs
  • Current Output: 6A per channel
  • Fault Protection: open load detect, over-temperature, short circuit, and UVLO
  • Operating Voltage: 5V to 28V
  • Rds On (Typ): 100mOhm LS, 100mOhm HS
  • Package: 12-BSOP (0.295", 7.50mm Width) exposed pad
  • Mounting: SMD (SMT) technology
  • Packaging: tape and reel
  • Standard Package: 1,000 units
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • ECCN: EAR99 compliant
