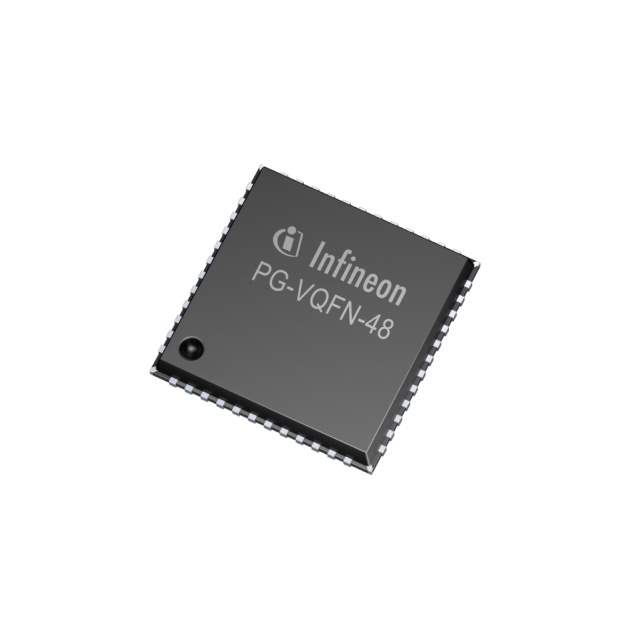

TLE7183FXUMA6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Infineon Technologies
Package Tape & Reel (TR)
Product Status Not For New Designs
Motor Type - AC, DC Brushless DC (BLDC)
Function Controller - Commutation, Direction Management
Output Configuration Pre-Driver - Half Bridge (3)
Interface Parallel
Technology Power MOSFET
Applications Automotive
Voltage - Supply 5.5V ~ 20V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 48-VQFN Exposed Pad
Supplier Device Package PG-VQFN-48-14
Base Product Number TLE7183
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001249810
Standard Package 2,000
Win Source Part Number 980519-TLE7183FXUMA6
Ultra Librarian 3D Model Ultra Librarian TLE7183FXUMA6 CAD Model

Description

The TLE7183FXUMA6 is an integrated circuit from Infineon Technologies.

  • Type: Motor Driver and Controller
  • Application: Automotive
  • Output Configuration: Pre-Driver Half-Bridge
  • Voltage Supply: 5.5V to 20V
  • Package: 48-VQFN Exposed Pad
  • Interface: Parallel
  • Technology: Power MOSFET
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Not for New Designs: True
