Same model may have multiple batches, images only for reference.

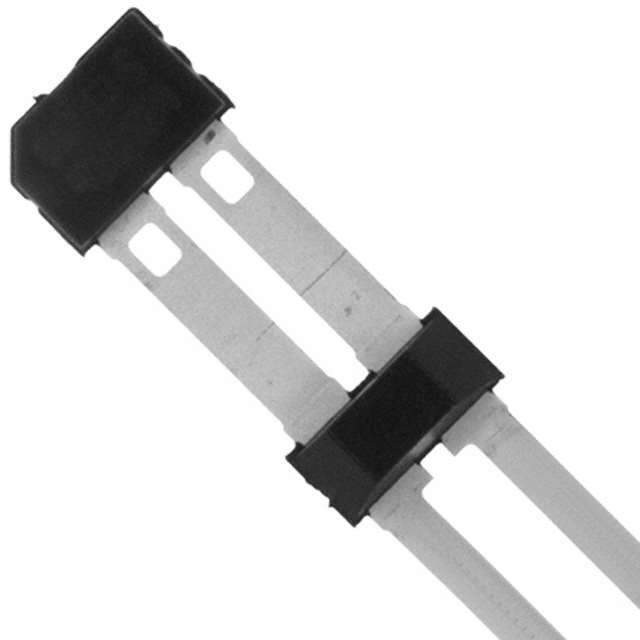

TLE49411CBAMA1 Real Image
Same model may have multiple batches, images only for reference.

TLE49411CBAMA1

Part No TLE49411CBAMA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAG SWITCH SPEC PURP SSO-2-2 / Digital Switch Special Purpose Current Source Hall Effect PG-SSO-2-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Function Special Purpose
Technology Hall Effect
Voltage - Supply 4.5V ~ 20V
Current - Supply (Max) 16.8mA
Output Type Current Source
Mounting Type Through Hole
Supplier Device Package PG-SSO-2-2
Package / Case 2-SIP, SSO-2-2
Base Product Number TLE49411
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names TLE49411CX,TLE4941-1C-ND,TLE4941-1CTB-ND,IFEINFTLE49411CBAMA1,SP000710654,TLE4941-1C,TLE49411CBAMA1CT,TLE49411C,TLE49411CBAMA1TB,SP000014553,TLE4941-1CCT,TLE49411CXA,TLE4941-1CCT-ND,2156-TLE49411CBAMA1
Standard Package 1,500
Win Source Part Number 1099711-TLE49411CBAMA1
Ultra Librarian 3D Model Ultra Librarian TLE49411CBAMA1 CAD Model

Description

The TLE49411CBAMA1 is a magnetic sensor switch from Infineon Technologies.

  • Series: Automotive, AEC-Q100
  • Package / Case: 2-SIP, SSO-2-2
  • Voltage - Supply: 4.5V ~ 20V
  • Current - Supply (Max): 16.8mA
  • Technology: Hall Effect
  • Output Type: Current Source
  • Applications: Position Sensing, Speed Detection, Gear Tooth Sensing
  • Packaging: Cut Tape (CT), Tape & Box (TB)
