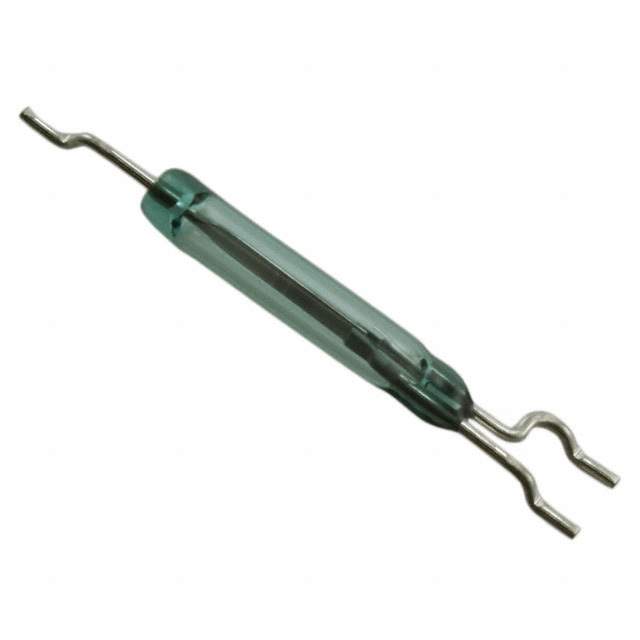

Same model may have multiple batches, images only for reference.

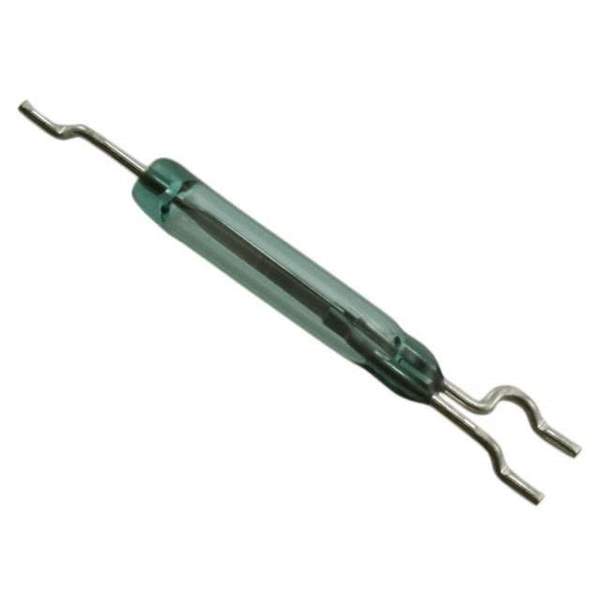

MDSM-DTR-15-20 Real Image
Same model may have multiple batches, images only for reference.

MDSM-DTR-15-20

Part No MDSM-DTR-15-20
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SWITCH REED SPDT 180MA 120V / Glass Body Reed Switch SPDT 15 ~ 20AT Operate Range 5W 180mA (AC), 250mA (DC) 120 V Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Magnetic, Reed Switches
Mfr Littelfuse Inc.
Series MDSM-DT
Package Tape & Reel
Type Glass Body Reed
Circuit SPDT
Operate Range 15 ~ 20AT
Current - Switching 180mA (AC), 250mA (DC)
Voltage - Switching AC 120 V
Voltage - Switching DC 175 V
Power - Rated 5W
Operate Time 0.7 ms
Release Time 1 ms
Mounting SMD (SMT)
Termination Style Gull Wing
Length - Overall 1.000" (25.40mm)
Size - Body 0.100" Dia x 0.580" L (2.54mm x 14.73mm)
Height Above Board 0.101" (2.56mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 1 pF
Current - Carry 1.5A (DC)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names MDSM-DTR15-20 AT-ND,F7840DKR,MDSMDTR1520 AT,MDSM-DTR-15-20-ND,F7840CT,-MDSM-DTR-15-20,Q5277288A,F7840TR,MDSM-DTR15-20 AT
Standard Package 2,500
Win Source Part Number 981837-MDSM-DTR-15-20
Ultra Librarian 3D Model Ultra Librarian MDSM-DTR-15-20 CAD Model

Description

The Littelfuse Inc. MDSM-DTR-15-20 is a glass body reed switch designed for magnetic applications.

  • Body: Glass
  • Application: Magnetic
  • Circuit: SPDT
  • Operate Range: 15 ~ 20AT
  • Release Range: Not Specified
  • Current Switching (AC): 180mA (AC)
  • Current Switching (DC): 250mA (DC)
  • Voltage Switching (AC): 120 V
  • Voltage Switching (DC): 175 V
  • Mounting: Surface Mount
  • Packaging: Tape & Reel
  • Package Size: 0.100" Dia x 0.580" L (2.54mm x 14.73mm)
  • Height Above Board: 0.101" (2.56mm)
  • Current-Carry Capacity: 1.5A (DC)
  • Power Rating: 5W
  • Operating Temperature: -40°C to 125°C
  • MSL Level: 1 (Unlimited)
