Same model may have multiple batches, images only for reference.

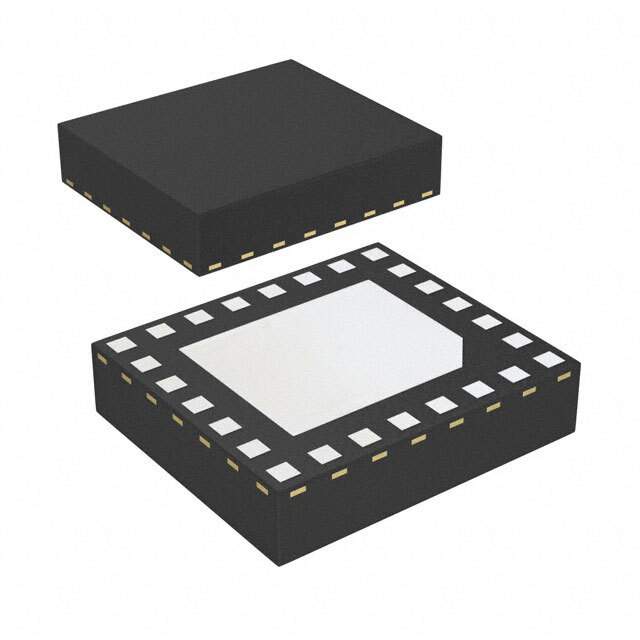

IRSM808-105MH Real Image
Same model may have multiple batches, images only for reference.

IRSM808-105MH

Part No IRSM808-105MH
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER 500V QFN
Datasheet
IRSM808-105MH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features Half Bridge Driver AC Motors UMOS 31-PQFN (8x9)
Manufacturer Infineon Technologies
Series µIPM™
Package Tray
Operating Temperature Range 150°C (TJ)
Mounting Surface Mount
Package 31-PowerVQFN
Case / Package 31-PQFN (8x9)
Family Name IRSM808
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 260
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 875305-IRSM808-105MH
Ultra Librarian 3D Model Ultra Librarian IRSM808-105MH CAD Model

Description

The Infineon Technologies IRSM808-105MH is a Half Bridge Driver AC Motors UMOS integrated circuit (IC) from the µIPM™ series.

  • Mounting: surface mount applications
  • Package: 31-PowerVQFN package
  • Maximum Operating Temperature: 150°C (TJ)
  • Pin Layout: 8x9
  • Series: IRSM808 family
  • Category: Integrated Circuits (ICs)
  • Supply and Demand Status: limited, with a quantity of 260 per package
  • ECCN: EAR99
  • REACH: REACH unaffected
  • MSL Level: 3 (168 hours)
  • Estimated Production Lead Time: 51 weeks
