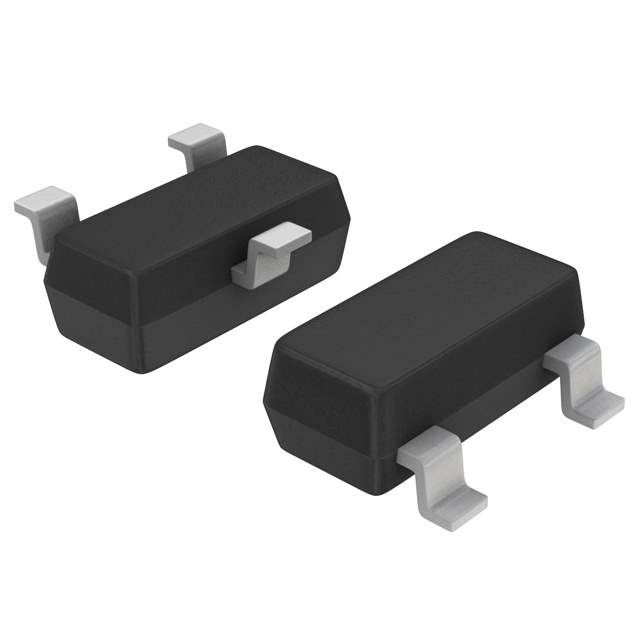

IRLML5103TR

Name: IRLML5103TR
Brand: Infineon Technologies
SKU: 710537
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRLML5103TR
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	MOSFET P-CH 30V 760MA SOT-23
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Cut Tape (CT)
Status	Obsolete
Transistor Polarity	P-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	30V
Id - Continuous Drain Current	760mA
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Maximum) at Id, Vgs	600mOhm at 600mA, 10V
Gate Source Voltage(th) (Maximum) at Id	1V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	5.1nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	75pF at 25V
Power Dissipation (Maximum)	540mW
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	Micro3/SOT-23
Manufacturer Package	TO-236-3, SC-59, SOT-23-3
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	710537-IRLML5103TR
Popularity	Low
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian IRLML5103TR CAD Model

Alternative Products

Description

The Infineon Technologies MOSFET is a P-Channel transistor designed to operate in the temperature range of -55°C to 150°C.

Manufacturer: Infineon Technologies
Type: MOSFET, P-Channel
Temperature Range: -55°C to 150°C
Vds Drain-Source Breakdown Voltage: 30V
Continuous Drain Current: 760mA
Applications: Discrete Semiconductor Products
Package: TO-236-3, SC-59, SOT-23-3
Power Dissipation (Maximum): 540mW
Gate Charge (Qg) (Maximum) @ Vgs: 5.1nC @ 10V
Gate Source Voltage (Maximum): ±20V
Input Capacitance (Ciss) (Maximum) @ Vds: 75pF @ 25V
Status: obsolete
Popularity: low
