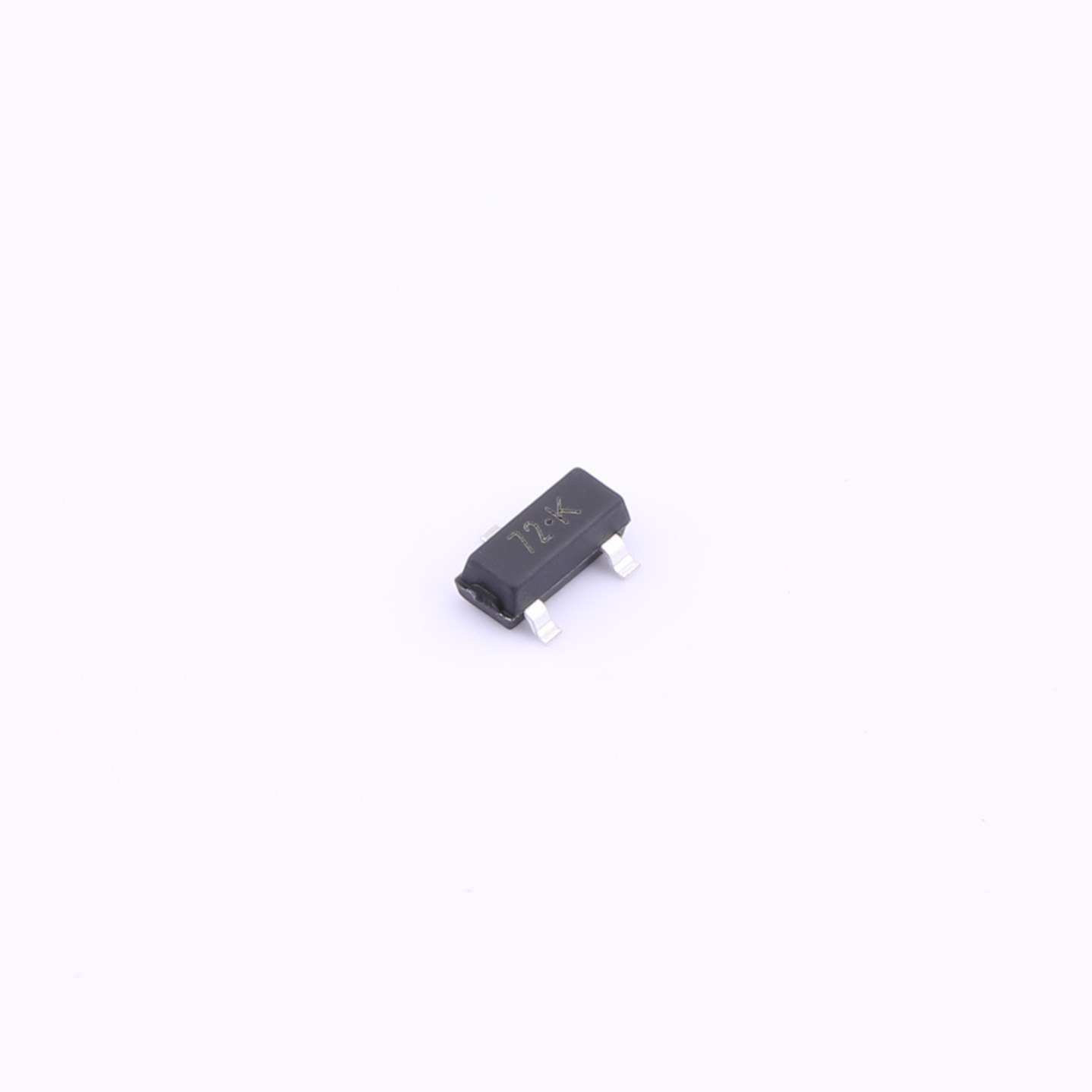

2N7002K

Name: 2N7002K
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1330070
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2N7002K
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	FETs - Single
Description	60V 300mA 350mW 4.5Ω@4.5V,0.2A 3V@250uA 1 N-channel SOT-23
Datasheet	2N7002K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1330070-2N7002K
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	320mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.7 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	24.5 pF @ 20 V
Power Dissipation (Max)	300mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
Current - Continuous Drain (Id) @ 25°C	300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V, 5V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.4 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	30 pF @ 25 V
Power Dissipation (Max)	430mW
Operating Temperature	-55°C ~ 175°C
Supplier Device Package	SOT-23
Package	Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C	340mA (Ta)
Rds On (Max) @ Id, Vgs	5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	40 pF @ 10 V
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	150°C (TJ)
Ultra Librarian 3D Model	Ultra Librarian 2N7002K CAD Model
