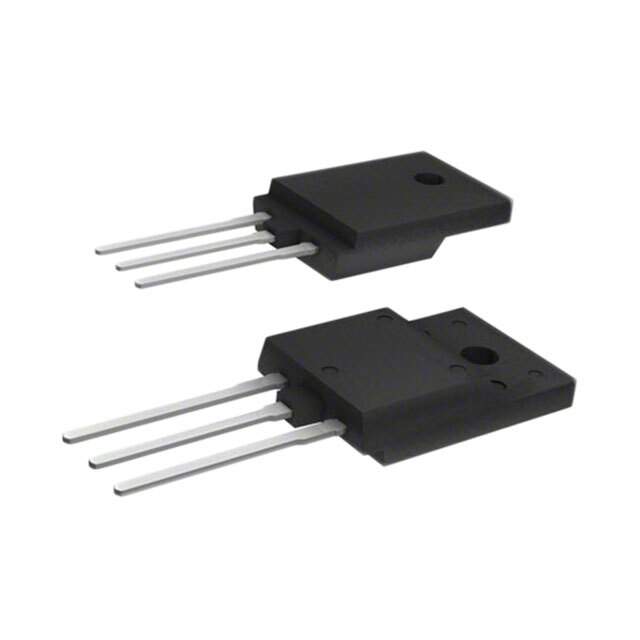

IRG4IBC20KD

Name: IRG4IBC20KD
Brand: Infineon Technologies
SKU: 605565
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRG4IBC20KD
Manufacturer	Infineon Technologies
Catalog	IGBTs - Single
Description	INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE \| IGBT 600V 11.5A 34W TO220FP
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tube
Status	Obsolete
Voltage - Collector Emitter Breakdown (Maximum)	600V
Current - Collector (Ic) (Maximum)	11.5A
Current - Collector Pulsed (Icm)	23A
Vce(on) (Maximum) at Vge, Ic	2.8V at 15V, 9A
Maximum Power	34W
Switching Energy	340μJ (on), 300μJ (off)
Input Type	Standard
Gate Charge	34nC
Td (on/off) at 25°C	54ns/180ns
Test Condition	480V, 9A, 50Ohm, 15V
Reverse Recovery Time (trr)	37ns
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Manufacturer Package	TO-220-3 Full Pack
Supplier Device Package	TO-220AB Full-Pak
Manufacturer Pack Quantity	50
MSL Level	1 (Unlimited)
Win Source Part Number	1188253-IRG4IBC20KD
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian IRG4IBC20KD CAD Model

Description

The Infineon Technologies 1188253-IRG4IBC20KD is an IGBT transistor with a TO-220AB Full-Pak package.

Maximum Power: 34W
Voltage - Collector Emitter Breakdown (Maximum): 600V
Current - Collector Pulsing (Icm): 23A
Switching Energy: 340μJ (on), 300μJ (off)
Reverse Recovery Time (trr): 37ns
Gate Charge: 34nC
Test Condition: 480V, 9A, 50Ohm, 15V
Product Status: Obsolete
Popularity: Medium
Suitable for Use In: Discrete semiconductor products
