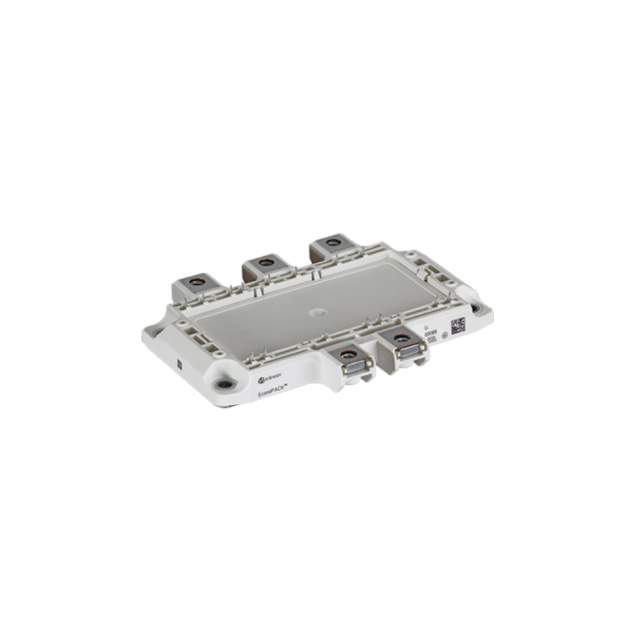

The FS100R12PT4 is an IGBT module manufactured by Infineon Technologies. It is designed for high-power switching applications, offering a combination of high current handling capability and efficient switching performance.

Applications

• Traction Drives
• Medium Voltage Drives
• Wind Turbines
• Solar Inverters
• Industrial Drives

Features

• 1200V Blocking Voltage: Suitable for medium voltage applications.
• 100A Continuous Collector Current: High current handling capability.
• Low VCE(sat): Reduces conduction losses.
• Fast Switching Speed: Enables high frequency operation.
• Integrated Diode: Includes an anti-parallel diode for inductive load handling.
• Isolated Baseplate: Provides electrical isolation for easy mounting.

Benefits

• High Efficiency: Reduces energy consumption and heat dissipation.
• Reliable Performance: Ensures stable operation in demanding environments.
• Simplified System Design: Reduces component count and simplifies layout.
• Improved Thermal Management: Optimized for efficient heat dissipation.
• Lower System Cost: Reduces overall component count and heat sink requirements.

Additional Details

The FS100R12PT4 IGBT module is designed for applications requiring high power and efficient switching. The low VCE(sat) minimizes conduction losses, contributing to overall system efficiency. The fast switching speed allows for higher operating frequencies, enabling the design of more compact and efficient power electronic systems. The integrated diode provides a freewheeling path for inductive loads, simplifying the design and reducing the need for external components. The isolated baseplate provides electrical isolation between the power semiconductors and the mounting surface, simplifying system assembly and improving safety. This IGBT module is typically packaged in a robust housing designed for efficient heat dissipation, ensuring reliable operation in demanding environments. It is a suitable choice for applications such as traction drives, medium voltage drives, and renewable energy systems where high power and efficiency are critical.
