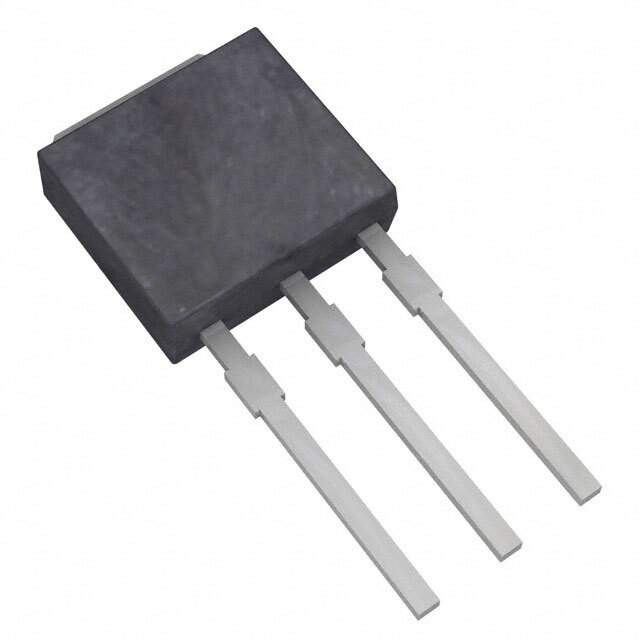

IRFU5505

Name: IRFU5505
Brand: Infineon Technologies
SKU: 605424
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRFU5505
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	Power MOSFET(Vdss=-55V, Rds(on)=0.11ohm, Id=-18A) \| MOSFET P-CH 55V 18A I-PAK
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tube
Status	Obsolete
Transistor Polarity	P-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	55V
Id - Continuous Drain Current	18A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	110mOhm at 9.6A, 10V
Gate Source Voltage(th) (Maximum) at Id	4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	32nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	650pF at 25V
Power Dissipation (Maximum)	57W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Supplier Device Package	IPAK (TO-251)
Manufacturer Package	TO-251-3 Short Leads, IPak, TO-251AA
Manufacturer Pack Quantity	75
MSL Level	1 (Unlimited)
Win Source Part Number	1188112-IRFU5505
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRFU5505 CAD Model

Description

The 1188112-IRFU5505 from Infineon Technologies is a P-Channel MOSFET transistor suitable for use in discrete semiconductor products.

Maximum Drain-Source Breakdown Voltage: 55V
Continuous Drain Current: 18A
Package: IPAK (TO-251)
Maximum Power Dissipation: 57W
Gate-Source Voltage Threshold: 4V @ 250μA
Gate Charge: 32nC @ 10V
Input Capacitance: 650pF @ 25V
Device Status: Obsolete
Supply and Demand Status: Limited
