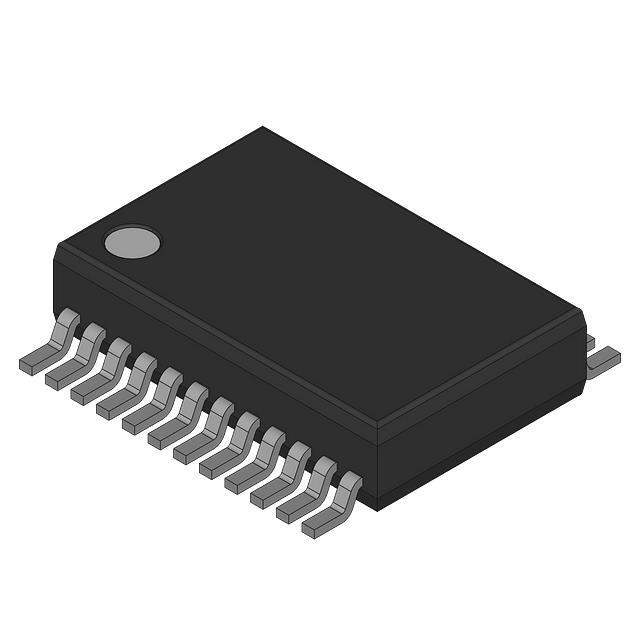

IR22141SSPBF Real Image
Same model may have multiple batches, images only for reference.

IR22141SSPBF

Part No IR22141SSPBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DRIVER HALF BRIDGE SGL 24SSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT
Supply Voltage - Operating 11.5 V to 20 V
Logic Voltage - VIL, VIH 0.8V, 2V
Current - Peak Output (Source, Sink) 2A, 3A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 1200V
Rise and Fall Time 24ns, 7ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 24-SSOP
Win Source Part Number 069176-IR22141SSPBF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 55
Ultra Librarian 3D Model Ultra Librarian IR22141SSPBF CAD Model

Description

The Infineon Technologies IR22141SSPBF is an obsolete (EOL) integrated circuit.

  • Driven Configuration: Half-bridge
  • Channels: Two independent channels
  • Input Type: Non-inverting
  • Gate Type: IGBT
  • High Side Voltage: 1200V (Maximum)
  • Logic Voltage (VIL, VIH): 0.8V, 2V
  • Current - Peak Output (Source, Sink): 2A, 3A
  • Temperature Range: -40°C to 150°C (TJ)
  • Package: 24-SSOP
  • Supply Voltage: 11.5V to 20V
  • Rise Time: 24ns
  • Fall Time: 7ns
  • Alternative Parts: DGD2181S8-13, IR22141SSTRPBF, and IR2114SSPBF
  • Supply and Demand Status: balanced
  • Package Quantity: 55
