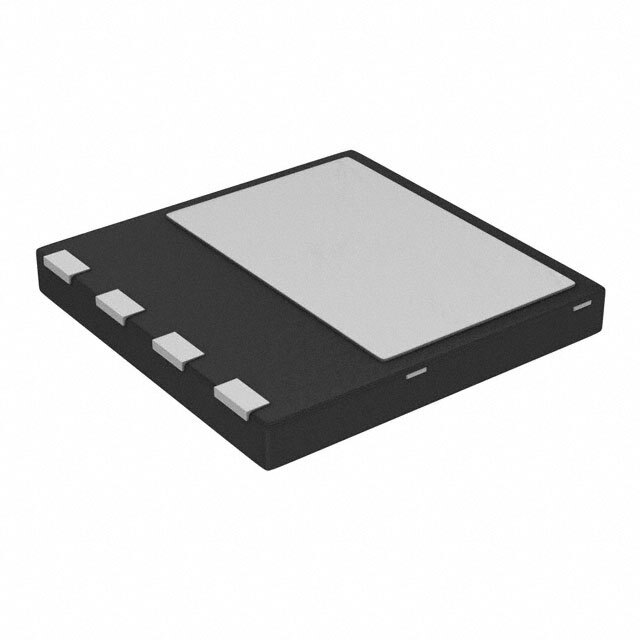

Same model may have multiple batches, images only for reference.
IPL60R125C7AUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IPL60R125C7AUMA1

Part No IPL60R125C7AUMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 17A 4VSON / N-Channel 600 V 17A (Tc) 103W (Tc) Surface Mount PG-VSON-4
Datasheet
IPL60R125C7AUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series CoolMOS™ C7
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 17A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 125mOhm @ 7.8A, 10V
Vgs(th) (Max) @ Id 4V @ 390µA
Gate Charge (Qg) (Max) @ Vgs 34 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1500 pF @ 400 V
Power Dissipation (Max) 103W (Tc)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-VSON-4
Package / Case 4-PowerTSFN
Base Product Number IPL60R
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 448-IPL60R125C7AUMA1CT,IPL60R125C7AUMA1-ND,SP001385066,448-IPL60R125C7AUMA1TR,448-IPL60R125C7AUMA1DKR
Standard Package 3,000
Win Source Part Number 990863-IPL60R125C7AUMA1
Ultra Librarian 3D Model Ultra Librarian IPL60R125C7AUMA1 CAD Model

Description

The Infineon Technologies IPL60R125C7AUMA1 is a CoolMOS™ C7 series N-Channel MOSFET transistor with a drain to source voltage of 600 V and a continuous drain current of 17A @ 25°C.

  • Drain to Source Voltage: 600 V
  • Continuous Drain Current: 17A @ 25°C
  • Rds On: 125mOhm @ 7.8A and 10V
  • Maximum Vgs(th): 4V @ 390μA
  • Power Dissipation: 103W @ Tc
  • Package: 4-PowerTSFN package
  • REACH: unaffected
  • ECCN: EAR99
