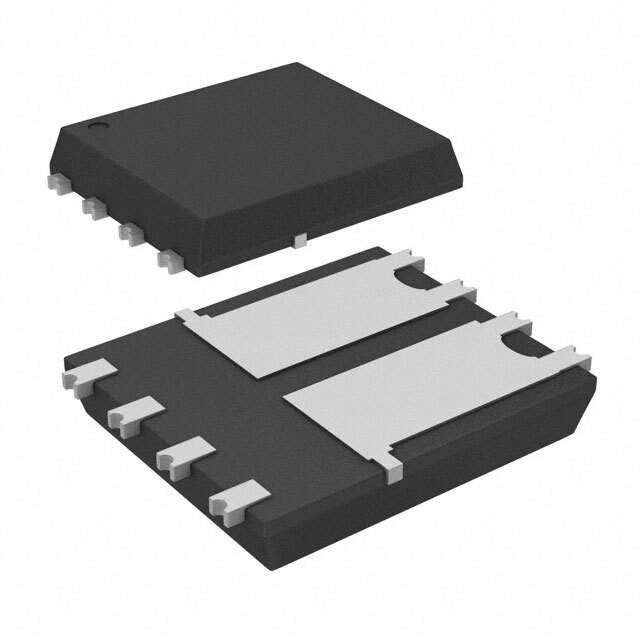

IPG20N06S4L14AATMA1 Real Image
Same model may have multiple batches, images only for reference.

IPG20N06S4L14AATMA1

Part No IPG20N06S4L14AATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 60V 20A 8TDSON / Mosfet Array 2 N-Channel (Dual) 60V 20A 50W Surface Mount, Wettable Flank PG-TDSON-8-10
Datasheet
IPG20N06S4L14AATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr Infineon Technologies
Series Automotive, AEC-Q101, OptiMOS™
Package Tape & Reel (TR)
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 20A
Rds On (Max) @ Id, Vgs 13.7mOhm @ 17A, 10V
Vgs(th) (Max) @ Id 2.2V @ 20µA
Gate Charge (Qg) (Max) @ Vgs 39nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 2890pF @ 25V
Power - Max 50W
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount, Wettable Flank
Package / Case 8-PowerVDFN
Supplier Device Package PG-TDSON-8-10
Base Product Number IPG20N
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP001023846,2156-IPG20N06S4L14AATMA1,INFINFIPG20N06S4L14AATMA1
Standard Package 5,000
Win Source Part Number 961271-IPG20N06S4L14AATMA1
Ultra Librarian 3D Model Ultra Librarian IPG20N06S4L14AATMA1 CAD Model

Description

The IPG20N06S4L14AATMA1 is a dual N-channel MOSFET array that is designed for use in a wide range of applications, including power management, automotive, and industrial applications.

  • Manufacturer: Infineon Technologies
  • Series: OptiMOS series
  • Gate: Logic-level gate
  • Drain to Source Voltage: 60V
  • Maximum Continuous Drain Current: 20A
  • Maximum Power Dissipation: 50W
  • On-State Resistance: 13.7mOhm @ 17A and 10V
  • Operating Temperature: High temperatures
  • Type: Surface-mount device
  • Package: Wettable flank package
