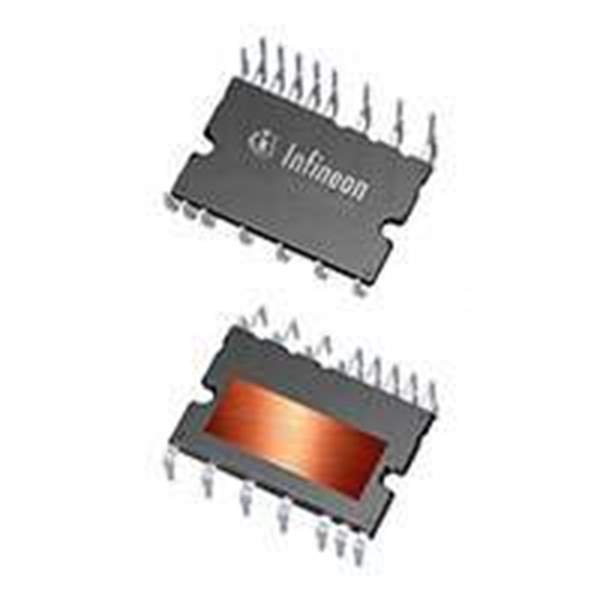

IM818MCCXKMA1 Real Image
Same model may have multiple batches, images only for reference.

IM818MCCXKMA1

Part No IM818MCCXKMA1
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description IGBT MODULE 1200V 16A 24PWRDIP / Power Driver Module IGBT 3 Phase Inverter 1.2 kV 16 A 24-PowerDIP Module (1.205", 30.60mm)
Datasheet
IM818MCCXKMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Power Driver Modules
Mfr Infineon Technologies
Series IM818-SCC
Package Tube
Type IGBT
Configuration 3 Phase Inverter
Current 16 A
Voltage 1.2 kV
Voltage - Isolation 2500Vrms
Mounting Type Through Hole
Package / Case 24-PowerDIP Module (1.205", 30.60mm)
Base Product Number IM818
Standard Package 14
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349328-IM818MCCXKMA1
Ultra Librarian 3D Model Ultra Librarian IM818MCCXKMA1 CAD Model

Description

The Infineon Technologies IM818MCCXKMA1 is an IGBT power driver module from the power driver modules category of discrete semiconductor products.

  • Type: 3 phase inverter
  • Voltage Range: 1.2 kV
  • Current: 16 A
  • Voltage Isolation: 2500Vrms
  • Package: 24-PowerDIP Module (1.205", 30.60mm)
  • ECCN: EAR99
  • REACH: Unaffected
