Same model may have multiple batches, images only for reference.

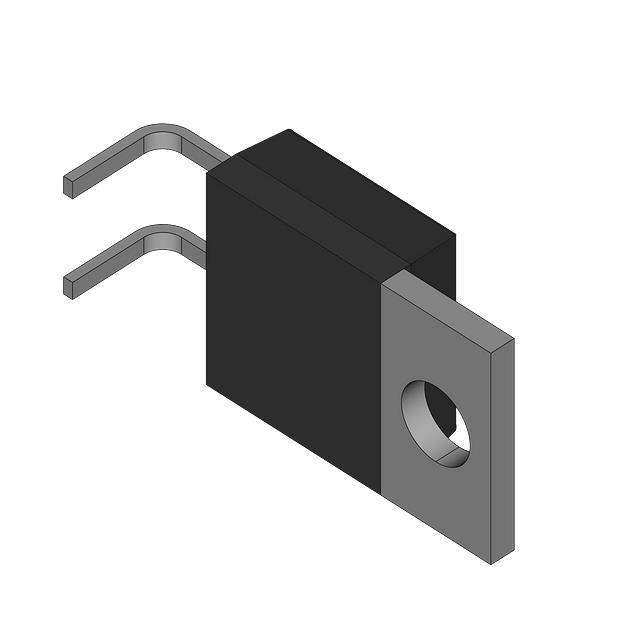

IDH16S60CAKSA1 Real Image
Same model may have multiple batches, images only for reference.

IDH16S60CAKSA1

Part No IDH16S60CAKSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 600V 16A TO220-2 / Diode Schottky 600V 16A 2-Pin(2+Tab) TO-220 Tube
Datasheet
IDH16S60CAKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Series thinQ!
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) 16A (DC)
Voltage - Forward (Vf) (Maximum) @ If 1.7V @ 16A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 200μA @ 600V
Capacitance @ Vr, F 650pF @ 1V, 1MHz
Mounting Style Through Hole
Package TO-220-2
Manufacturer Package PG-TO220-2
Operating Temperature - Junction -55°C ~ 175°C
Win Source Part Number 776488-IDH16S60CAKSA1
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name IDH16S60CAKSA1
Introduction Date April 27, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IDH16S60CAKSA1 CAD Model

Description

The Infineon Technologies 776488-IDH16S60CAKSA1 is a silicon carbide Schottky diode that belongs to the thinQ! series. It has a no recovery time greater than 500mA, making it suitable for use in various electronic applications.

  • Maximum Forward Voltage: 1.7V @ 16A
  • Maximum Reverse Voltage: 600V
  • Capacitance: 650pF @ 1V and 1MHz
  • Operating Temperature Range: -55°C to 175°C
  • Package: TO-220-2
  • Mounting: Through hole
  • Halogen Free: Yes
  • Popularity: Medium
