Same model may have multiple batches, images only for reference.

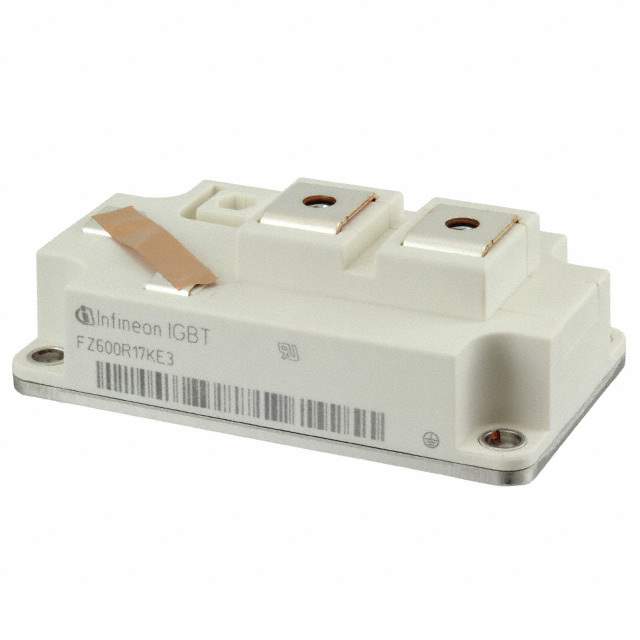

FZ600R17KE3HOSA1 Real Image
Same model may have multiple batches, images only for reference.

FZ600R17KE3HOSA1

Part No FZ600R17KE3HOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1700V 840A 3150W / IGBT Module Trench Field Stop Single 1700 V 840 A 3150 W Chassis Mount Module
Datasheet
FZ600R17KE3HOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series C
Package Tray
IGBT Type Trench Field Stop
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 1700 V
Current - Collector (Ic) (Max) 840 A
Power - Max 3150 W
Vce(on) (Max) @ Vge, Ic 2.45V @ 15V, 600A
Current - Collector Cutoff (Max) 3 mA
Input Capacitance (Cies) @ Vce 54 nF @ 25 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FZ600R17
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names FZ600R17KE3-ND,SP000100778,FZ600R17KE3
Standard Package 10
Win Source Part Number 1015913-FZ600R17KE3HOSA1
Ultra Librarian 3D Model Ultra Librarian FZ600R17KE3HOSA1 CAD Model

Description

The Infineon Technologies 948128 is a single configuration IGBT module.

  • Series: C
  • Win Source Part Number: 1015913-FZ600R17KE3HOSA1
  • Maximum Power: 3150 W
  • Current Collector: 840 A
