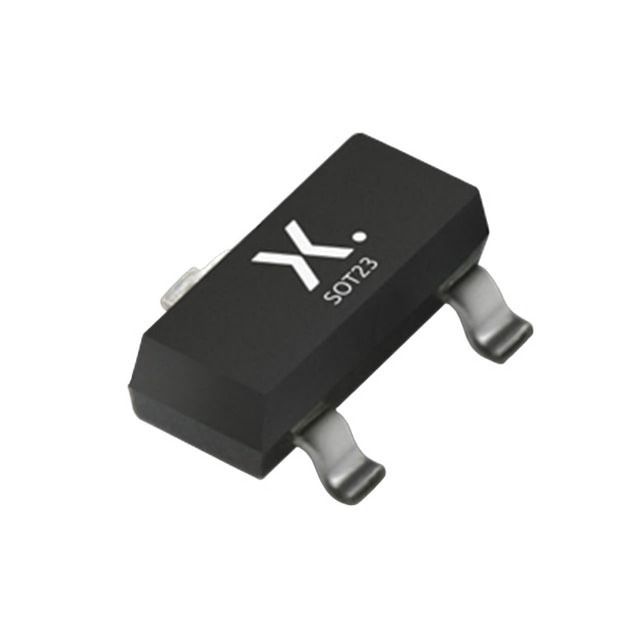

BAV70,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAV70,215

Part No BAV70,215
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 100V 215MA SOT23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Packaging Reel
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 215mA (DC)
Voltage - Forward (Vf) (Maximum) at If 1.25V at 150mA
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage at Vr 500nA at 80V
Operating Temperature - Junction 150°C (Maximum)
Mounting Style SMD
Manufacturer Package TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB
Part Number Series BAV70
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800501-BAV70,215
Ultra Librarian 3D Model Ultra Librarian BAV70,215 CAD Model

Description

The Nexperia USA Inc. BAV70,215 is a fast recovery diode designed by Nexperia USA Inc.

  • Maximum Reverse Voltage: 100V
  • Maximum Forward Voltage: 1.25V @ 150mA
  • Operating Temperature: Up to 150°C
  • Current Average Rectified: 215mA
  • Manufacturer Pack Quantity: 3,000
