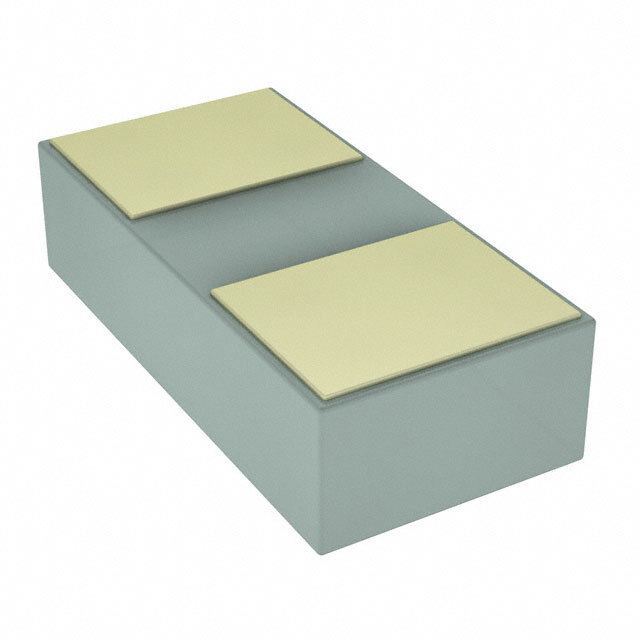

ESD119B1W01005E6327XTSA1

Name: ESD119B1W01005E6327XTSA1
Brand: Infineon Technologies
SKU: 1057852
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ESD119B1W01005E6327XTSA1
Manufacturer	Infineon Technologies
Catalog	TVS - Diodes
Description	TVS DIODE 5.5VWM 14VC WLL-2-2 / 14V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount P/PG-WLL-2-2
Datasheet	ESD119B1W01005E6327XTSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Infineon Technologies
Package	Tape & Reel
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6.1V
Voltage - Clamping (Max) @ Ipp	14V
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)
Power - Peak Pulse	35W
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.2pF @ 1MHz
Temperature Range - Operating	-55°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	01005 (0402 Metric)
Supplier Device Package	P/PG-WLL-2-2
Base Product Number	ESD119
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	2156-ESD119B1W01005E6327XTSA1,IFEINFESD119B1W01005E6327XTSA1,ESD119B1W01005E6327XTSA1TR,ESD119B1W01005E6327XTSA1DKR,SP001428732,ESD119B1W01005E6327XTSA1CT
Standard Package	15,000
Win Source Part Number	1057852-ESD119B1W01005E6327XTSA1
Ultra Librarian 3D Model	Ultra Librarian ESD119B1W01005E6327XTSA1 CAD Model

Alternative Products

Description

The Infineon Technologies Zener diode is an electronic component designed to protect HDMI applications from overvoltage and electrostatic discharge.

Application: HDMI
Package: 01005
Mounting Type: SMD (SMT)
Channel: Bidirectional
Voltage Reverse Standoff: 5.5V
Voltage Breakdown Minimum: 6.1V
Voltage Clamping @ Maximum Ipp: 14V
Power Peak Pulse: 35W
Capacitance @ Frequency: 0.2pF @ 1MHz
Current Peak Pulse: 2.5A (8/20μs)
Temperature Range: -55°C to 125°C
