Same model may have multiple batches, images only for reference.

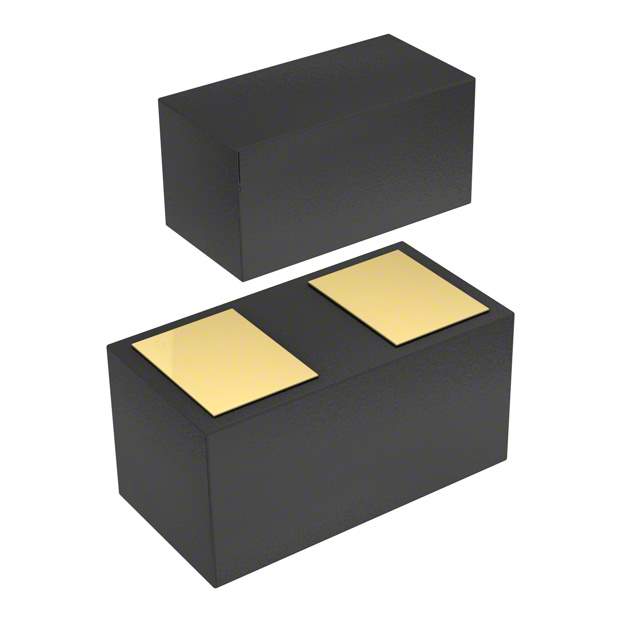

ESD113B102ELSE6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

ESD113B102ELSE6327XTSA1

Part No ESD113B102ELSE6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 3.6VWM 8VC TSSLP-2-4  /  8V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount PG-TSSLP-2-4
Datasheet
ESD113B102ELSE6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Infineon Technologies
Package Tape & Reel
Product Status Not For New Designs
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.6V (Max)
Voltage - Clamping (Max) @ Ipp 8V
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power Line Protection No
Applications HDMI
Capacitance @ Frequency 0.22pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package PG-TSSLP-2-4
Base Product Number ESD113
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names INFINFESD113B102ELSE6327XTSA1,2156-ESD113B102ELSE6327XTSA1,ESD113B102ELSE6327XTSA1DKR,SP001061696,ESD113B102ELSE6327XTSA1TR,ESD113B102ELSE6327XTSA1CT,ESD113-B1-02ELS E6327
Standard Package 15,000
Win Source Part Number 971742-ESD113B102ELSE6327XTSA1
Ultra Librarian 3D Model Ultra Librarian ESD113B102ELSE6327XTSA1 CAD Model

Description

The ESD113B102ELSE6327XTSA1 is a Zener type TVS diode from Infineon Technologies.

  • Type: Zener type TVS diode
  • Application: Designed for use in HDMI applications
  • Package: 0201 (0603 metric)
  • Channel: Bidirectional
  • Reverse Standoff Voltage: 3.6V (max)
  • Clamping Voltage: 8V @ Ipp
  • Peak Pulse Current: 3A (8/20µs)
  • Capacitance: 0.22pF @ 1MHz
  • Temperature Range: -40°C to 125°C (TA)
  • REACH: REACH unaffected
  • ECCN: EAR99
