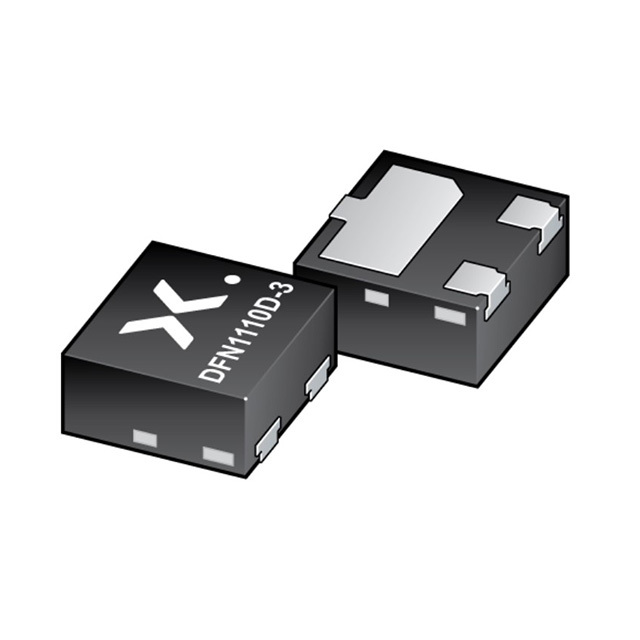

Same model may have multiple batches, images only for reference.
PESD2CANFD24V-QCZ Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PESD2CANFD24V-QCZ

Part No PESD2CANFD24V-QCZ
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 42VC DFN1412D-3
Datasheet
PESD2CANFD24V-QCZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 25.5V
Voltage - Clamping (Max) @ Ipp 42V
Current - Peak Pulse (10/1000µs) 2.6A (8/20µs)
Power Line Protection No
Applications CAN
Capacitance @ Frequency 5.2pF @ 1MHz
Operating Temperature -55°C ~ 150°C (TA)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad
Supplier Device Package DFN1412D-3
Ultra Librarian 3D Model Ultra Librarian PESD2CANFD24V-QCZ CAD Model
