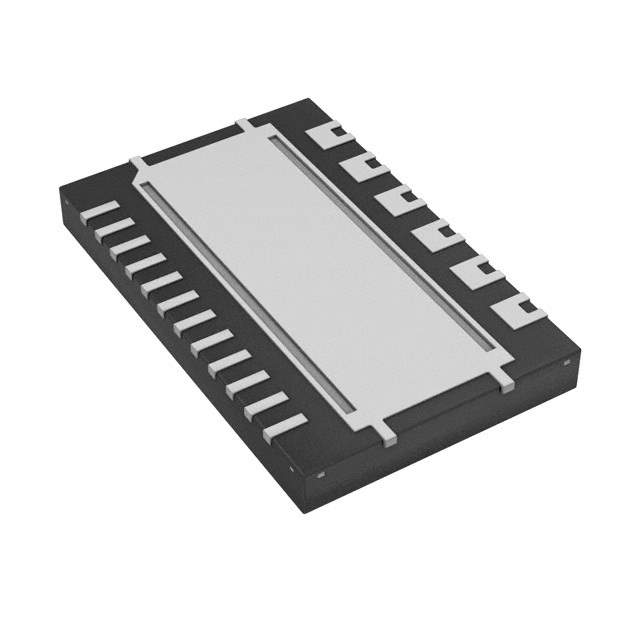

BTS54220LBAAUMA1 Real Image
Same model may have multiple batches, images only for reference.

BTS54220LBAAUMA1

Part No BTS54220LBAAUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH HISIDE PG-TSON-24
Datasheet
BTS54220LBAAUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Switch Type General Purpose
Number of Outputs 4
Output Type N-Channel
Voltage - Load 5.5 V to 28 V
Supply Voltage - Operating 3.8 V to 5.5 V
Rds On (Typ) 9 mOhm, 27 mOhm
Features Slew Rate Controlled
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package TSON-24-3
Win Source Part Number 111146-BTS54220LBAAUMA1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian BTS54220LBAAUMA1 CAD Model

Description

Description

The BTS54220LBAAUMA1 is an efficient high-side smart switch designed to optimize power distribution management. This component is highly reliable and provides a range of protection features to ensure uninterrupted operation in demanding conditions.

Features and Benefits

  • Integrated protection against high voltage and high temperature.
  • Current limitation and short-circuit protection.
  • Enhanced energy efficiency due to reduced power dissipation.

Applications

Utilize the BTS54220LBAAUMA1 for:

  • Automotive lighting controls.
  • DC motor controls.
  • Relay replacement in industrial equipment.
  • Telecommunication system controls.
