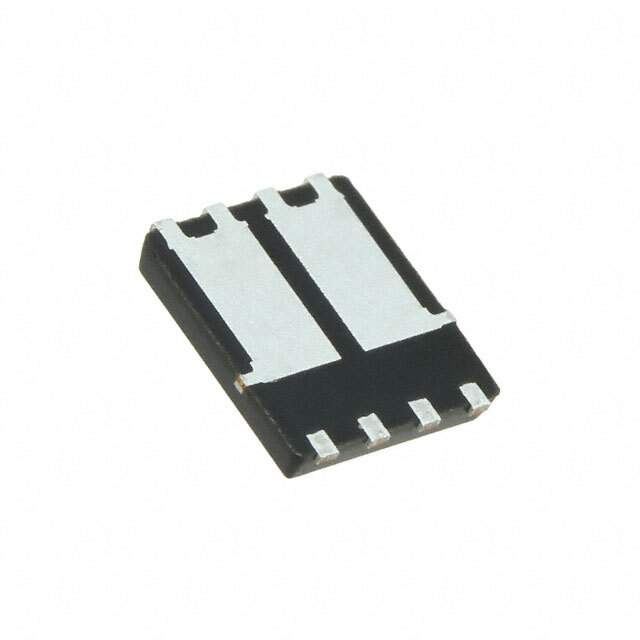

Same model may have multiple batches, images only for reference.

BSC155N06NDATMA1

Name: BSC155N06NDATMA1
Brand: Infineon Technologies
SKU: 1049670
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSC155N06NDATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	TRENCH 40<-<100V / Mosfet Array 2 N-Channel (Dual) 60V 20A (Tc) 50W (Tc) Surface Mount PG-TDSON-8-4
Datasheet	BSC155N06NDATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr	Infineon Technologies
Series	OptiMOS™-T2
Package	Tape & Reel
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Rds On (Max) @ Id, Vgs	15.5mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	4V @ 20µA
Gate Charge (Qg) (Max) @ Vgs	29nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	2250pF @ 30V
Power - Max	50W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Package / Case	8-PowerVDFN
Supplier Device Package	PG-TDSON-8-4
Base Product Number	BSC155
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	448-BSC155N06NDATMA1DKR,448-BSC155N06NDATMA1CT,SP003883348,448-BSC155N06NDATMA1TR
Standard Package	5,000
Win Source Part Number	1049670-BSC155N06NDATMA1
Ultra Librarian 3D Model	Ultra Librarian BSC155N06NDATMA1 CAD Model

Alternative Products

Description

The Infineon Technologies 1049670-BSC155N06NDATMA1 is a dual N-channel MOSFET array transistor.

Drain to Source Voltage (Vdss): 60V
Mounting Type: SMD (SMT)
Current Rating: 20A (Tc)
Rds On (Max) @ Id, Vgs: 15.5mOhm @ 17A, 10V
Package/Case: 8-PowerVDFN
Supplier Device Package: PG-TDSON-8-4
Packaging: Tape and reel
