BGA5M1BN6E6327XTSA1

Part No BGA5M1BN6E6327XTSA1
Manufacturer Infineon Technologies
Catalog RF Amplifiers
Description IC RF AMP LTE 1.805GHZ-2.2GHZ / RF Amplifier IC LTE 1.805GHz ~ 2.2GHz PG-TSNP-6-10
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Amplifiers
Mfr Infineon Technologies
Package Tape & Reel
Frequency 1.805GHz ~ 2.2GHz
P1dB -17dBm
Gain 19.3dB
Noise Figure 0.65dB
RF Type LTE
Voltage - Supply 1.5V ~ 3.6V
Current - Supply 9.5mA
Test Frequency 2GHz
Mounting SMD (SMT)

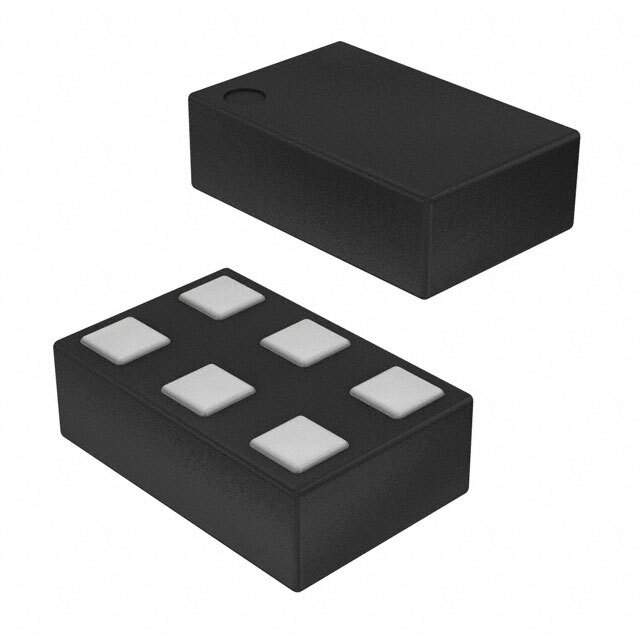

Package / Case 6-XFDFN
Supplier Device Package PG-TSNP-6-10
Base Product Number BGA5M1
Other Names BGA5M1BN6E6327XTSA1CT,BGA5M1BN6E6327XTSA1DKR,IFEINFBGA5M1BN6E6327XTSA1,BGA5M1BN6E6327XTSA1TR,2156-BGA5M1BN6E6327XTSA1,BGA5M1BN6E6327XTSA1,SP001778002
Standard Package 12,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1236236-BGA5M1BN6E6327XTSA1
Ultra Librarian 3D Model Ultra Librarian BGA5M1BN6E6327XTSA1 CAD Model

Description

The Infineon Technologies 1236236-BGA5M1BN6E6327XTSA1 is an RF amplifier with a 1.805GHz ~ 2.2GHz frequency range.

  • Frequency Range: 1.805GHz ~ 2.2GHz
  • Application: LTE
  • Voltage Supply: 1.5V ~ 3.6V
  • Gain: 19.3dB
  • Noise Figure: 0.65dB
  • Packaging: tape and reel
  • Standard Package: 12,000
