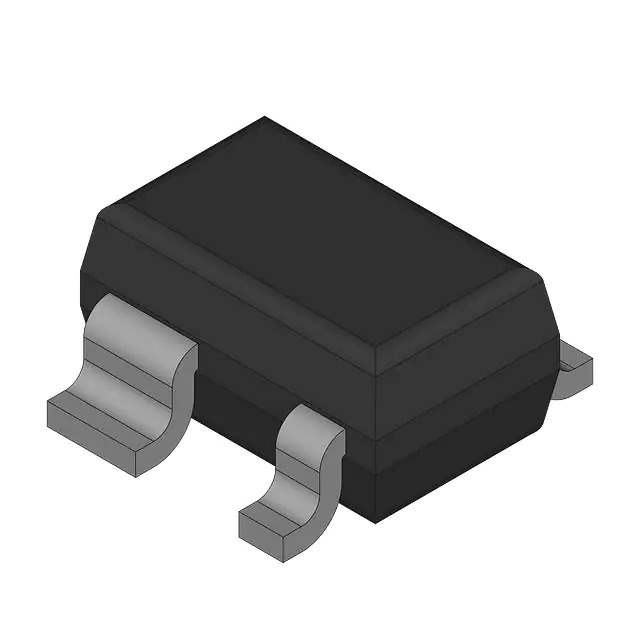

BAS70-07W Real Image
Same model may have multiple batches, images only for reference.

BAS70-07W

Part No BAS70-07W
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY DIODE - HIGH SPEED SWIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Infineon Technologies
Package Bulk
Product Status Active
Diode Configuration 2 Independent
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 70 V
Current - Average Rectified (Io) (per Diode) 70mA (DC)
Voltage - Forward (Vf) (Max) @ If 1 V @ 15 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 100 ps
Current - Reverse Leakage @ Vr 100 nA @ 50 V
Operating Temperature - Junction 150°C
Mounting Type Surface Mount
Package / Case SC-82A, SOT-343
Supplier Device Package PG-SOT343-4-1
Base Product Number BAS70
Standard Package 1 pcs
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568769-BAS70-07W
Ultra Librarian 3D Model Ultra Librarian BAS70-07W CAD Model

Description

The 568769-BAS70-07W is a Schottky diode array from Infineon Technologies.

  • Application: Designed for use in diode rectifiers.
  • Maximum DC Reverse Voltage (Vr): 70V.
  • Forward Voltage (Vf): 1V @ 15mA.
  • Reverse Recovery Time (trr): 100ps.
  • Current Leakage: 100nA @ 50V.
  • Package: SC-82A, SOT-343.
  • Mounting Type: Surface mountable.
  • Current Rating: 70mA.
  • Application: Suitable for small signal applications.
  • Operating Temperature Range: Up to 150°C.
  • Product Status: Active.
