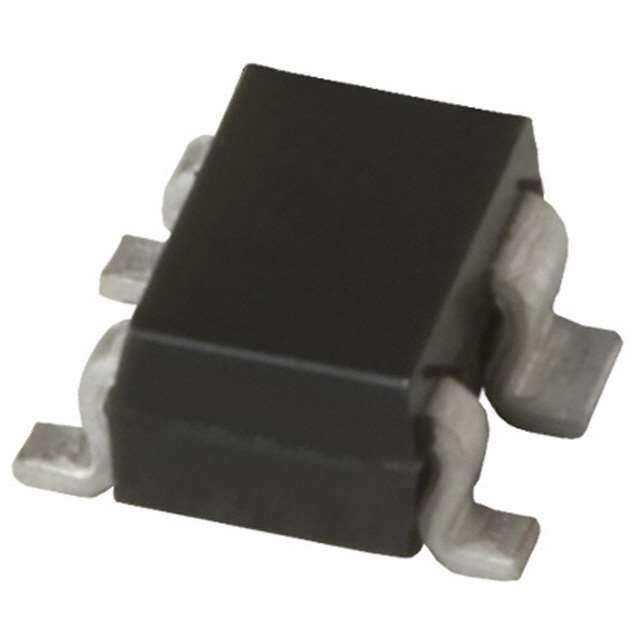

BAS12507WH6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BAS12507WH6327XTSA1

Part No BAS12507WH6327XTSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 25V SOT343 / Diode Array 2 Independent Schottky 25 V 100mA (DC) Surface Mount SC-82A, SOT-343
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer Infineon Technologies
Packaging Reel - TR
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 25 V
Current - Average Rectified (Io) (per Diode) 100mA (DC)
Voltage - Forward (Vf) (Max) @ If 950 mV @ 35 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 150 nA @ 25 V
Operating Temperature - Junction 150°C (Max)
Mounting Surface Mount
Case / Package SC-82A, SOT-343
Supplier Device Package PG-SOT343-4-3
Base Product Number BAS12507
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number BAS12507WH6327XTSA1TR-ND,448-BAS12507WH6327XTSA1CT,BAS 125-07W H6327-ND,2156-BAS12507WH6327XTSA1,IFEINFBAS12507WH6327XTSA1,BAS12507WH6327XTSA1TR,448-BAS12507WH6327XTSA1TR,SP000749602,BAS 125-07W H6327,448-BAS12507WH6327XTSA1DKR
Standard Package 3,000
Win Source Part Number 1325712-BAS12507WH6327XTSA1
Ultra Librarian 3D Model Ultra Librarian BAS12507WH6327XTSA1 CAD Model

Description

The Infineon Technologies BAS12507WH6327XTSA1 is a schottky diode rectifier array manufactured by Infineon Technologies.

  • Description: Designed for use in various electronic circuits that require high-speed switching and low forward voltage drop.
  • Maximum Reverse Voltage: 25V
  • Maximum Forward Voltage: 950mV @ 35mA
  • Current Reverse Leakage: 150nA @ 25V
  • Package: PG-SOT343-4-3 package
  • Mounting: Surface mount
  • ROHS3: Compliant
  • REACH: Unaffected
