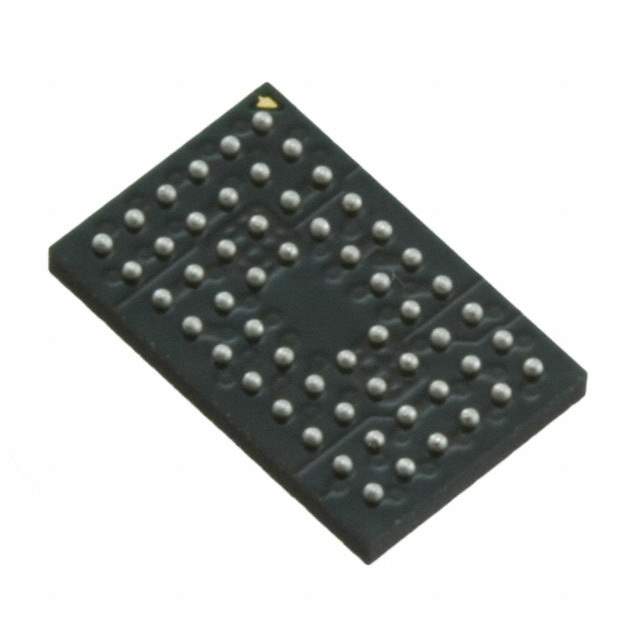

The ICS95V2F857AHLFT is a clock generator from IDT (Integrated Device Technology), designed for application-specific timing requirements. It falls under the category of clock/timing ICs tailored for specific applications, often used in computing and embedded systems to provide precise clock signals.

Applications

• Desktop PCs
• Notebook PCs
• Server Platforms
• Embedded Systems
• Motherboards

Features

• Generates all clocks required for Intel platforms
• Supports various CPU and chipset clock frequencies
• Integrated loop filter components for reduced BOM cost
• Low phase noise performance for stable system operation
• Spread spectrum modulation for EMI reduction
• Advanced power management features to minimize power consumption
• 3.3V operating voltage
• Lead-free and RoHS compliant package

Benefits

• Provides precise and stable clock signals, ensuring reliable system performance.
• Reduces overall system cost by integrating loop filter components.
• Minimizes electromagnetic interference (EMI), improving system stability and compliance.
• Lowers power consumption, extending battery life in portable devices and reducing energy costs in servers.
• Simplifies board layout and reduces component count.
• Meets environmental regulations (RoHS compliance).

Additional Details

The ICS95V2F857AHLFT is typically used in conjunction with Intel chipsets and processors. Its function is to generate the precise clock frequencies needed for the CPU, memory, and other peripherals to operate correctly. It often supports spread spectrum clocking (SSC) to reduce EMI emissions. The device is designed for high-volume manufacturing and is available in a lead-free package. Proper layout and decoupling techniques are critical for achieving optimal performance.

This clock generator is specifically designed to meet the stringent timing requirements of modern computing platforms. Its low jitter and phase noise characteristics ensure that the system operates reliably, even under demanding workloads. The integrated loop filter components help to reduce external component count, simplifying board design and reducing overall system cost.

By offering precise clock signals and power-saving features, the ICS95V2F857AHLFT contributes to improved system performance, reduced energy consumption, and lower overall system cost. Its compliance with environmental regulations makes it a suitable choice for environmentally conscious designs.
