Same model may have multiple batches, images only for reference.

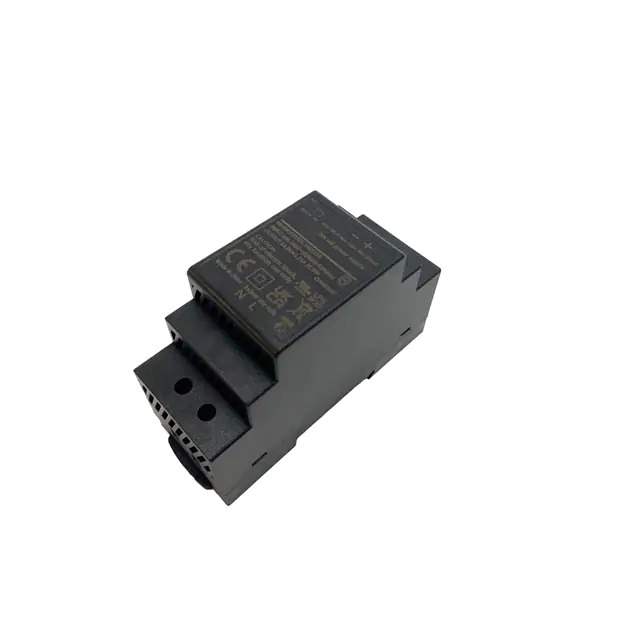

56YSD30S-1202500 Real Image
Same model may have multiple batches, images only for reference.

56YSD30S-1202500

Part No 56YSD30S-1202500
Manufacturer Ideal Power Ltd.
Catalog Industrial, DIN Rail Power Supplies
Description AC/DC DIN RAIL SUPPLY 12V 30W
Datasheet
56YSD30S-1202500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - Industrial, DIN Rail Power Supplies
Mfr Ideal Power Ltd.
Series 56YSD30S (30W)
Package Box
Product Status Active
Input Type AC
Number of Outputs 1
AC Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 12V
Current - Output (Max) 2.5A
Power (Watts) 30W
Applications Industrial, ITE (Commercial)
Efficiency 88%
Temperature Range - Operating -20°C ~ 50°C
Features Adjustable Output, IP20
Size / Dimension 3.54" L x 1.38" W x 2.28" H (90.0mm x 35.0mm x 58.0mm)
Approval Agency BSMI, CE, EAC, TUV, UL
Standard Number 508; 60950-1
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 868015-56YSD30S-1202500
Ultra Librarian 3D Model Ultra Librarian 56YSD30S-1202500 CAD Model

Description

The 868015-56YSD30S-1202500 is a 30W industrial DIN rail power supply from the 56YSD30S series. It features adjustable output and has an IP20 rating, providing protection against dust and solid objects. Ideal Power Ltd.

  • Output: Adjustable
  • IP Rating: IP20
  • Size: 3.54" L x 1.38" W x 2.28" H
  • Application: Industrial and ITE (Commercial)
  • Output Count: Single
  • Power Rating: 30W
  • Output Current: 2.5A @ 12V
  • Efficiency: 88%
  • Operating Temperature: -20°C to 50°C
  • Product Status: Active
  • Certifications: BSMI, CE, EAC, TUV, UL
