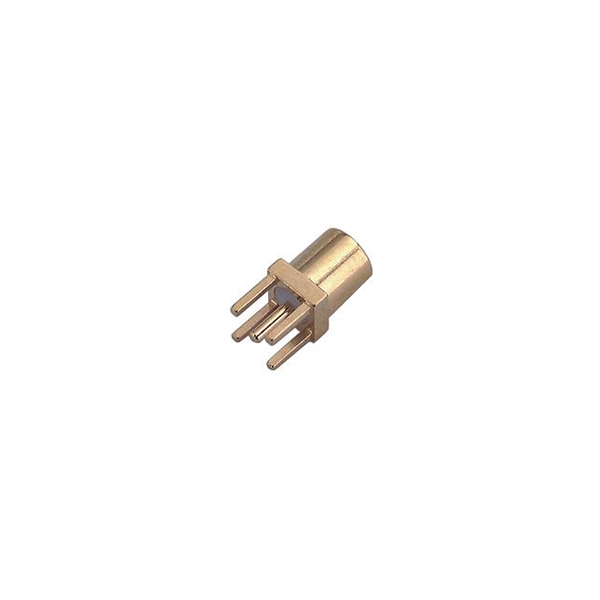

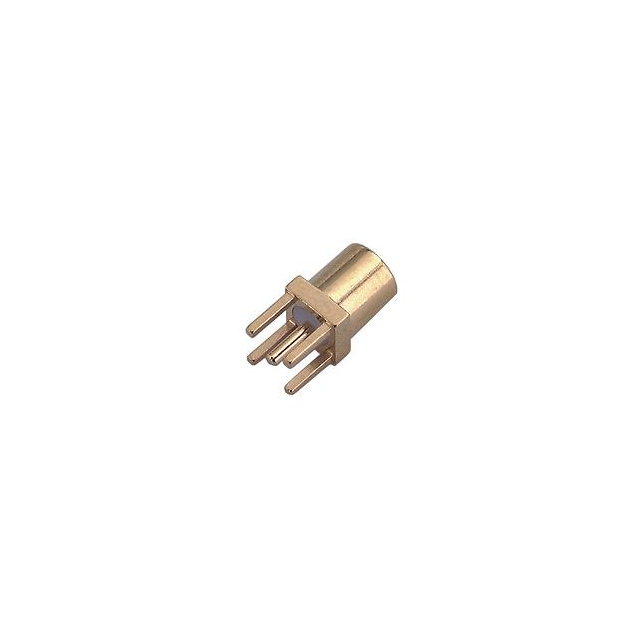

82_MMCX-50-0-1/111_NE Real Image
Same model may have multiple batches, images only for reference.

82_MMCX-50-0-1/111_NE

Part No 82_MMCX-50-0-1/111_NE
Manufacturer Huber+Suhner, Inc.
Catalog Coaxial Connectors (RF)
Description 82_MMCX-50-0-1/111_NE / MMCX Connector Jack, Female Socket 50Ohm Through Hole Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Huber+Suhner, Inc.
Package Bulk
Connector Style MMCX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 155°C
Voltage Rating 170 V
Mating Cycles 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 22645958,3628-82_MMCX-50-0-1/111_NE
Standard Package 1
Win Source Part Number 1158010-82_MMCX-50-0-1/111_NE
Ultra Librarian 3D Model Ultra Librarian 82_MMCX-50-0-1/111_NE CAD Model

Description

The 1158010-82_MMCX-50-0-1/111_NE is a coaxial connector manufactured by Huber+Suhner, Inc.

  • Connector Type: Snap-On Jack Female Socket
  • Impedance: 50Ω
  • Maximum Frequency: 6 GHz
  • Voltage Rating: 170V
  • Package: Bulk
  • Mounting Type: Through-Hole
  • Body Material: Brass
  • Body Finish: Gold
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Temperature Range: -55°C to 155°C
  • Application: RF
