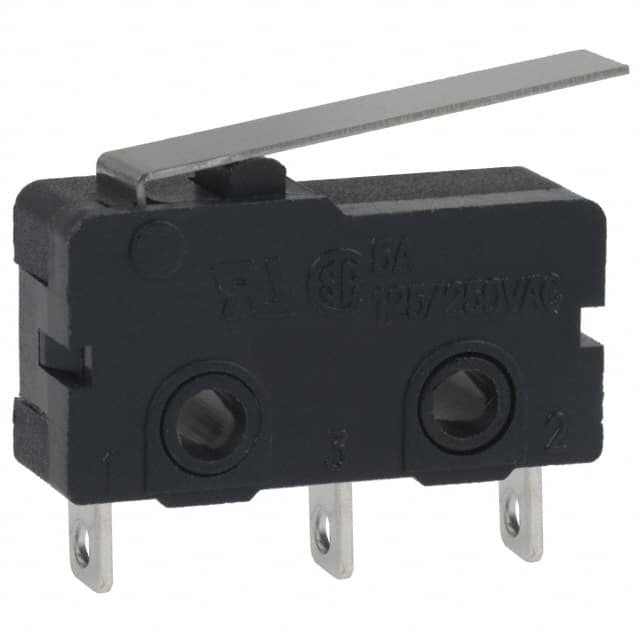

ZM50E10C01
Same model may have multiple batches, images only for reference.

ZM50E10C01

Part No ZM50E10C01
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
ZM50E10C01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Honeywell
Series ZM
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Operating Force 33gf
Release Force 8.000gf
Operating Position 0.465" (11.8mm)
Pretravel 0.157" (4.0mm)
Differential Travel 0.032" (0.81mm)
Overtravel 0.025" (0.6mm)
Temperature Range - Operating -40°C ~ 120°C
Electrical Life 6,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number ZM50
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 904319-ZM50E10C01
Ultra Librarian 3D Model Ultra Librarian ZM50E10C01 CAD Model

Description

The ZM series limit switch with part number 904319-ZM50E10C01 is a versatile component suitable for various applications.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Straight Lever
  • Termination Style: Solder Lug
  • Voltage Rating: 125V AC
  • Operating Force: 33gf
  • Mechanical Life: 10,000,000 cycles
  • Mounting: Chassis Mounting
  • Temperature Range: -40°C to 120°C
  • Manufacturer: Honeywell
